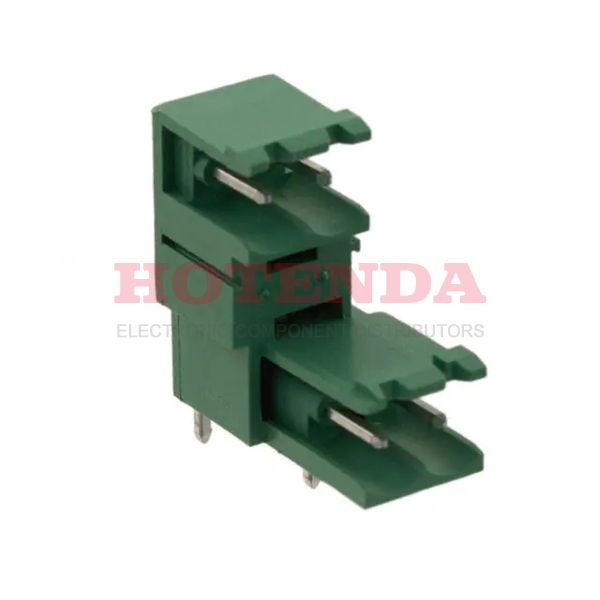

Name: 1762062
Brand: Phoenix Contact
SKU: 1762062
Price: 2.63000 USD
Availability: InStock

new-10%

1762062

Manufacturer part number:1762062

Manufacturer:Phoenix Contact

Description:1762062 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1762062 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	158g
Packaging	Bulk
Published	2010
Series	COMBICON MDSTB
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	250V
Voltage - Rated DC	508mV
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	22.1mm
Insulation Height	0.933 23.70mm
Current Rating	10A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Current	15A
Number of Decks	2
Voltage - IEC	400V
Positions Per Level	2
Number of Ways	2
Safety Approval	CB; CCA; CSA; CUL; EAC; GL
Header Orientation	90°, Right Angle
Number of Positions Per Level	2
Fastening Method	CONNECTOR
Height	22.1mm
Length	12.7mm
Width	26.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1762062 Product Details

1762062 Overview

This product is packaged in a Plug box.A Through Hole mounting type is specified for the device.To package the product, a Bulk case is used.Specifically, it is one of the products in the COMBICON MDSTB Series.Many aspects of its Interlocking (Side) feature increase its effectiveness.It is mounted by Through Hole.Many Header, Male Pins, Shrouded (2 Side) products share the same benefits as this part.
