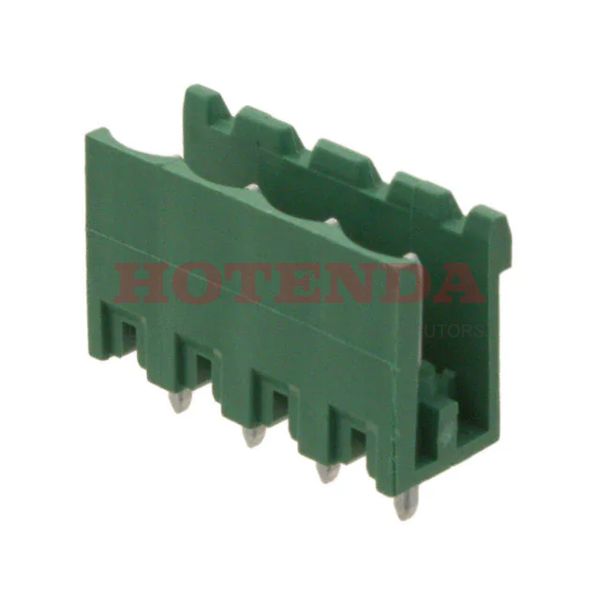

Name: 1758034
Brand: Phoenix Contact
SKU: 1758034
Price: 1.55000 USD
Availability: InStock

new-10%

1758034

Manufacturer part number:1758034

Manufacturer:Phoenix Contact

Description:1758034 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1758034 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	153.999996g
Packaging	Bulk
Published	2005
Series	COMBICON MSTBV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (2 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Voltage - Rated DC	320V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Poles	4
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	400V
Number of Ways	4
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	15.9mm
Length	20.32mm
Width	20.32mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1758034 Product Details

1758034 Overview

Through Hole is the mounting type.The product is packaged in a Bulk case.COMBICON MSTBV Series product.There is a Through Hole mount on the part.Compared to other Header, Male Pins, Shrouded (2 Side) products, this part has a lot of benefits to offer.
