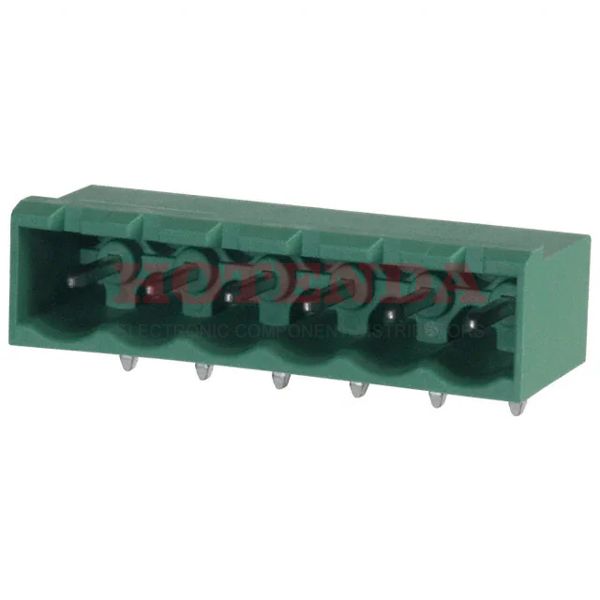

Name: 1757514
Brand: Phoenix Contact
SKU: 1757514
Price: 2.25000 USD
Availability: InStock

new-10%

1757514

Manufacturer part number:1757514

Manufacturer:Phoenix Contact

Description:1757514 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757514 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	2.901999g
Packaging	Bulk
Published	2005
Series	COMBICON MSTBA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Number of Poles	6
Number of Decks	1
Voltage - IEC	400V
Number of Ways	6
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	12.1mm
Length	32mm
Width	32mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1757514 Product Details

1757514 Overview

You'll get Plug packages.There is a mounting type of Through Hole for this device.Packaging the product involves using a Bulk case.A member of the COMBICON MSTBA Series.Moreover, there are a number of other features, including PBT, 94V-0, to name just a few.Through Hole is mounting the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
