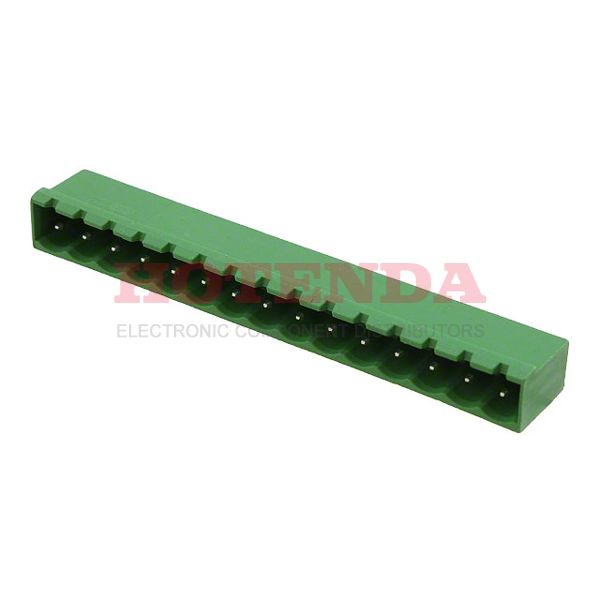

Name: 1757378
Brand: Phoenix Contact
SKU: 1757378
Price: 5.90000 USD
Availability: InStock

new-10%

1757378

Manufacturer part number:1757378

Manufacturer:Phoenix Contact

Description:1757378 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757378 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	152.999995g
Packaging	Bulk
Published	2005
Series	COMBICON MSTBA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Poles	15
Number of Decks	1
Current - UL	15A
Voltage - IEC	400V
Number of Ways	15
Safety Approval	UL; VDE; CSA
Header Orientation	90°, Right Angle
Height	12.1mm
Length	78.2mm
Width	78.12mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1757378 Product Details

1757378 Overview

It comes in Plug packaging.Through Hole is the type of mounting for the device.To package the product, we use a Bulk case.Among the products in the COMBICON MSTBA Series, it is one of the most popular.Additionally, there are other features such as PBT, UL 94V-0.This part is mounted by Through Hole. There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
