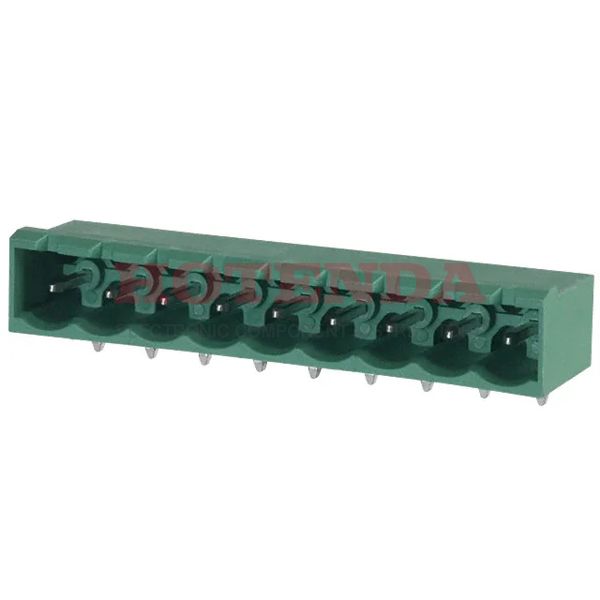

Name: 1757310
Brand: Phoenix Contact
SKU: 1757310
Price: 3.31000 USD
Availability: InStock

new-10%

1757310

Manufacturer part number:1757310

Manufacturer:Phoenix Contact

Description:1757310 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1757310 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	152.999995g
Packaging	Bulk
Published	2000
Series	COMBICON MSTBA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	9
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated DC	250V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage - Rated AC	250V
Approval Agency	CSA, EN, UL, VDE
Lead Pitch	5.08mm
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Number of Poles	9
Number of Decks	1
Voltage - IEC	400V
Number of Ways	9
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	12.1mm
Length	47.72mm
Width	47.64mm
Thickness	40.64mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1757310 Product Details

1757310 Overview

It comes in a Plug package.Mounting type is Through Hole.Packaging the product involves using a Bulk case.The product belongs to the COMBICON MSTBA Series.The part is mounted by Through Hole.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
