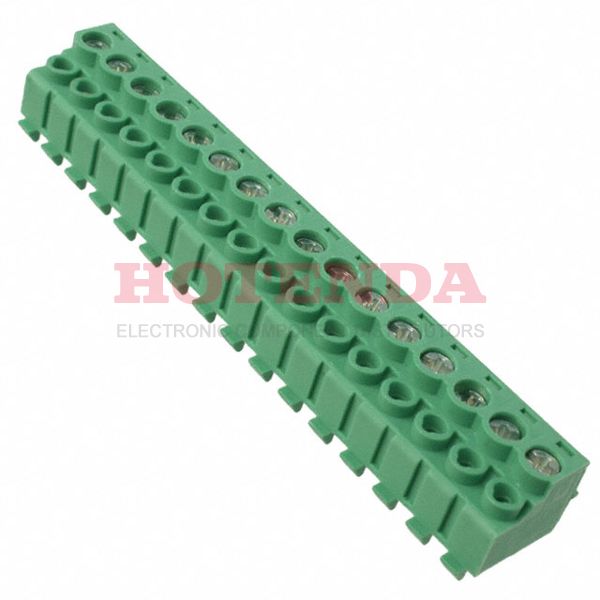

Name: 1755871
Brand: Phoenix Contact
SKU: 1755871
Price: 3.86000 USD
Availability: InStock

new-10%

1755871

Manufacturer part number:1755871

Manufacturer:Phoenix Contact

Description:1755871 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755871 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON PT
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug for Unshrouded Header
Color	Green
Gender	Female
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Insulation Height	0.484 12.30mm
Reach Compliance Code	not_compliant
Current Rating	10A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	6mm
Number of Positions Per Level	16
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1755871 Product Details

1755871 Overview

This product is packaged in a Screw box.A Free Hanging (In-Line) mounting type is specified for the device.This product is packaged in a case marked Bulk.A member of the COMBICON PT Series.This part is mounted by Free Hanging.
