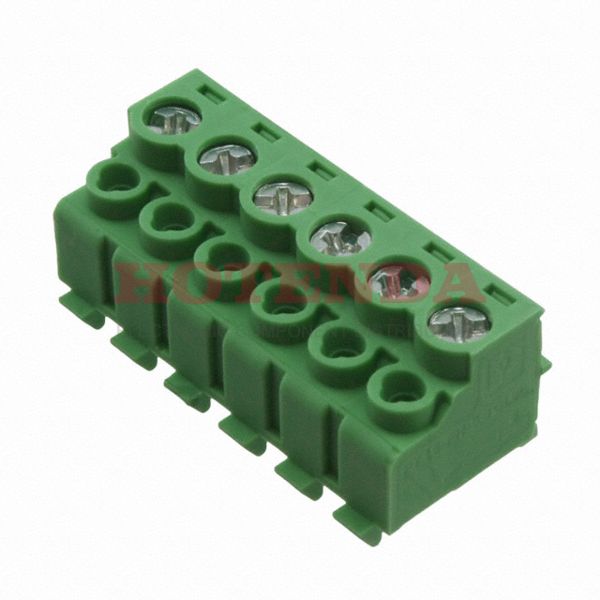

Name: 1755774
Brand: Phoenix Contact
SKU: 1755774
Price: 1.67000 USD
Availability: InStock

new-10%

1755774

Manufacturer part number:1755774

Manufacturer:Phoenix Contact

Description:1755774 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1755774 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2010
Series	COMBICON PT
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug for Unshrouded Header
Color	Green
Gender	Female
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Right Angle
Insulation Height	0.484 12.30mm
Reach Compliance Code	not_compliant
Current Rating	10A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	6
Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	630V
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1755774 Product Details

1755774 Overview

The product comes in a package of Screw.Mounting type is Free Hanging (In-Line).We package the product with a Bulk case.The product is a member of the COMBICON PT Series.Cable, Free Hanging is the mounting point for the part.There are a number of benefits that this part has in common with other Plug for Unshrouded Header products.
