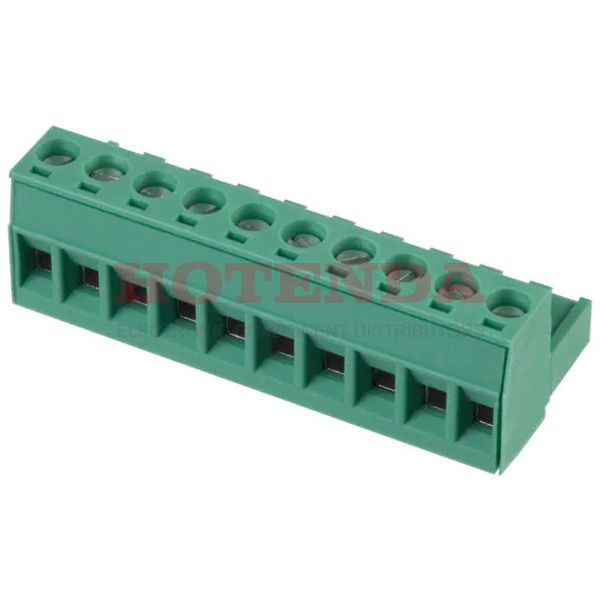

Name: 1754601
Brand: Phoenix Contact
SKU: 1754601
Price: 10.52000 USD
Availability: InStock

new

1754601

Manufacturer part number:1754601

Manufacturer:Phoenix Contact

Description:1754601 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1754601 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Published	2008
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	STANDARD: UL 94V-0, PA
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE, cULus
Number of Contacts	10
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	10
Safety Approval	CB; CSA; CUL; EAC; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	50mm
Width	50mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1754601 Product Details

1754601 Overview

Screw, Socket packaging is included.The device's mounting type is Free Hanging (In-Line).A Bulk case is used for packaging.The product is part of the COMBICON MSTB Series.Moreover, there are a number of other features, including STANDARD: UL 94V-0, PA, to name just a few.Many aspects of its Retention Latches (Non-Wire Side) feature increase its effectiveness.It is mounted by Free Hanging, Plug-In.This chip should not be supplied with a voltage greater than 250V.There are a lot of similarities between this part and other Plug, Female Sockets products.
