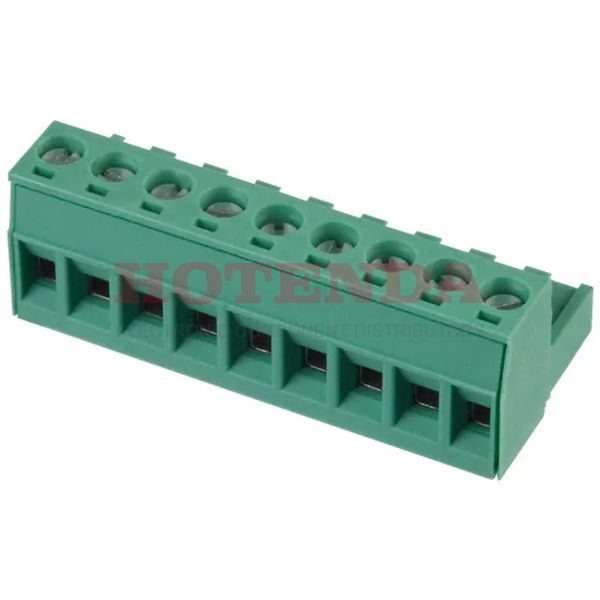

Name: 1754588
Brand: Phoenix Contact
SKU: 1754588
Price: 9.46000 USD
Availability: InStock

new

1754588

Manufacturer part number:1754588

Manufacturer:Phoenix Contact

Description:1754588 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1754588 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Published	2008
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, UL, VDE, cULus
Number of Contacts	9
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	9
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Screw Size	M3
Stripping Length	7mm
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	45mm
Width	45mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1754588 Product Details

1754588 Overview

Packaging is in the form of Screw, Socket.Mounting type Free Hanging (In-Line) is selected for the device.An Bulk case is utilized for packaging the product.The product is part of the COMBICON MSTB Series.In many ways, Retention Latches (Non-Wire Side) makes it more powerful.It is mounted by Cable, Free Hanging, Plug-In.Ensure that the supply voltage of this chip does not exceed 250V.Other Plug, Female Sockets products benefit from this part as well.
