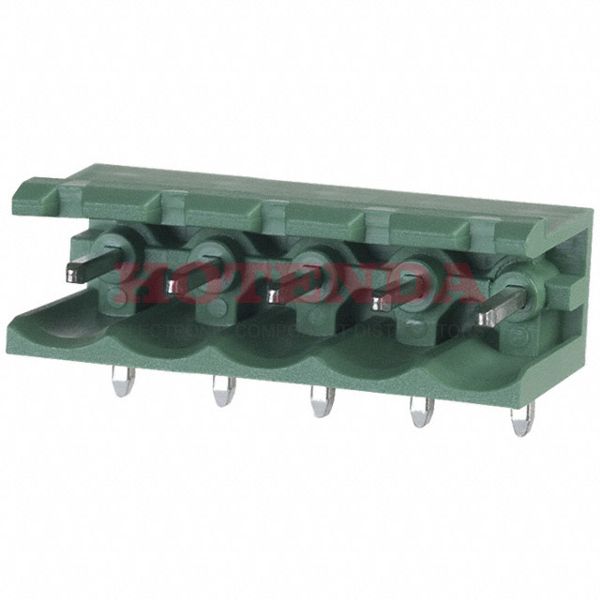

Name: 1754494
Brand: Phoenix Contact
SKU: 1754494
Price: 2.00000 USD
Availability: InStock

new-10%

1754494

Manufacturer part number:1754494

Manufacturer:Phoenix Contact

Description:1754494 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1754494 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	2.240009g
Packaging	Bulk
Published	2010
Series	COMBICON MSTB
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	8.6mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Number of Poles	5
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	400V
Number of Ways	5
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	12.1mm
Length	25mm
Width	25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1754494 Product Details

1754494 Overview

This device has a mounting type of Through Hole.An orange Bulk case is used to package the product.This product is part of the COMBICON MSTB Series.In addition, there are other features such as PBT, 94V-0, to mention only a few.Through Hole is mounting the part.There are many benefits that this part shares with other Header, Male Pins, Shrouded (2 Side) products as well.
