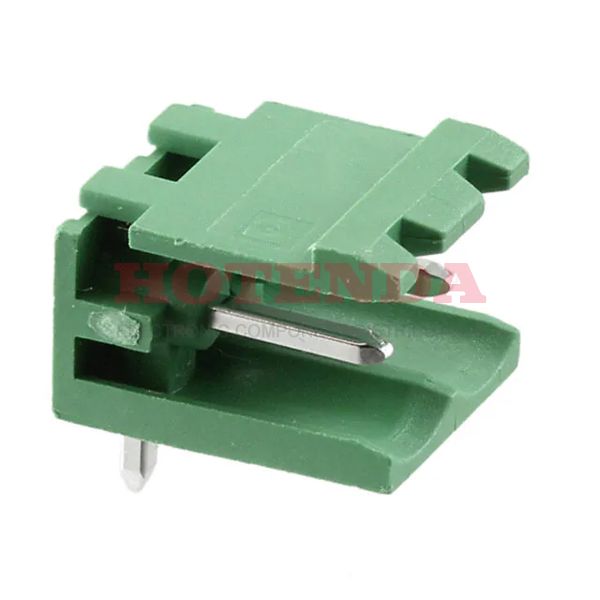

Name: 1754436
Brand: Phoenix Contact
SKU: 1754436
Price: 0.80000 USD
Availability: InStock

new-10%

1754436

Manufacturer part number:1754436

Manufacturer:Phoenix Contact

Description:1754436 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1754436 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	1.08899g
Packaging	Bulk
Published	2003
Series	COMBICON MSTB
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	STANDARD: UL 94V-0, PA
HTS Code	8536.69.40.40
Voltage - Rated DC	320V
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Number of Poles	2
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	400V
Number of Ways	2
Safety Approval	CB; CSA; CUL; EAC; UL; VDE
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	12mm
Length	10mm
Width	12.1mm
Thickness	5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1754436 Product Details

1754436 Overview

The mounting type of the device is Through Hole.The product is packaged in a Bulk case.The product is part of the COMBICON MSTB Series.Additionally, there are other features such as STANDARD: UL 94V-0, PA.Through Hole represents the mounting point for the part.Other Header, Male Pins, Shrouded (2 Side) products share lots of benefits with this part.
