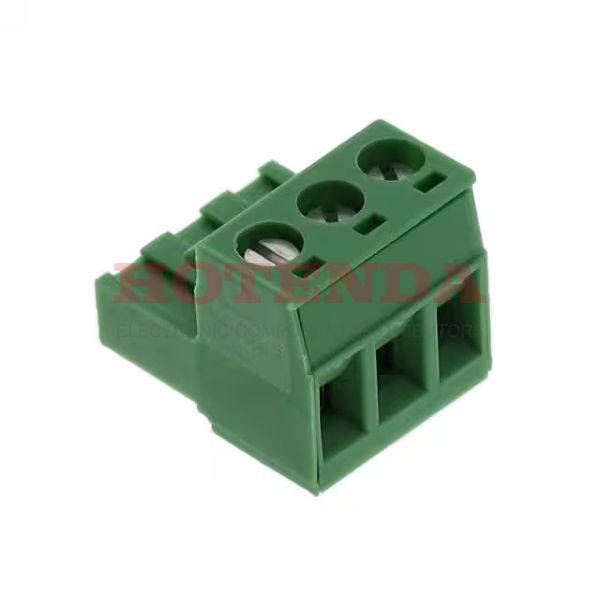

Name: 1752218
Brand: Phoenix Contact
SKU: 1752218
Price: 5.91000 USD
Availability: InStock

new-10%

1752218

Manufacturer part number:1752218

Manufacturer:Phoenix Contact

Description:1752218 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1752218 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Gold
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	907.18474g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	STANDARD: UL 94V-0, PA
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	3
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	CB; CCA; CSA; CUL; GOST; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	15.24mm
Length	15mm
Width	18.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1752218 Product Details

1752218 Overview

Screw, Socket packaging is included.It's mounted Free Hanging (In-Line).In order to package the product, a Bulk case is used.Specifically, it is one of the products in the COMBICON MSTB Series.Furthermore, there are other features such as STANDARD: UL 94V-0, PA, to name a few.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.Cable, Free Hanging is the mounting point for the part.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
