1748707

1748707

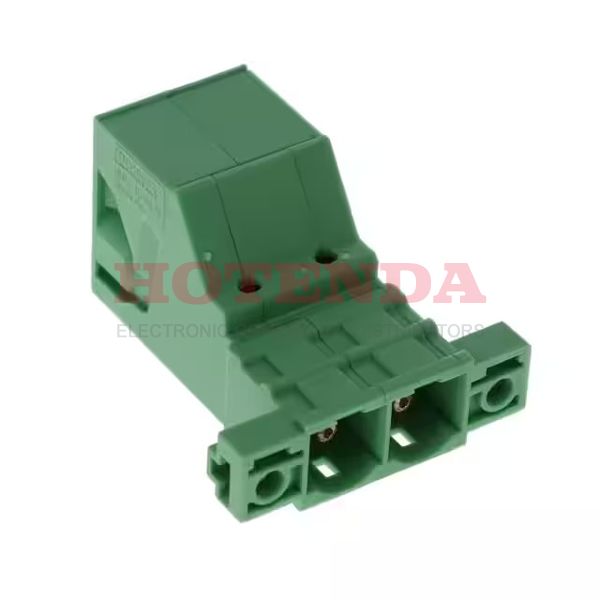

1748707

Phoenix Contact

1748707 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1748707 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Weight 21.900007g
PackagingBulk
Published 2011
Series COMBICON ISPC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional FeaturePA, UL 94V0
HTS Code8536.69.40.40
Pitch 0.400 10.16mm
Insulation Height 0.988 25.10mm
Current Rating76A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1
Current 66A
Wire Gauge (Max) 4 AWG
Wire Gauge (Min) 18 AWG
Contact Mating Finish Silver
Number of Decks 1
Wire Gauge or Range - AWG 4-20 AWG
Voltage - IEC 1kV
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.75-16mm2
Wire Strip Length 18mm
Current - IEC 76A
Number of Positions Per Level 2
Fastening Method SPRING LOADED
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:708 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$12.354723$12.354723
10$11.655398$116.55398
100$10.995659$1099.5659
500$10.373263$5186.6315
1000$9.786097$9786.097

1748707 Product Details

1748707 Overview


There is a Free Hanging (In-Line) mounting type for the device.We use a Bulk case to package the product.This is from the COMBICON ISPC Series.Also, there's PA, UL 94V0, to name a few.With its Mating Flange feature, it is more powerful in many ways.Mounted by Free Hanging.As with other Plug, Male Pins products, this part also offers a wide range of benefits.

1748707 Features


COMBICON ISPC series

1748707 Applications


There are a lot of Phoenix Contact 1748707 Terminal Blocks applications.

  • Energy efficient lighting (LED)
  • Datacom
  • Refrigeration control
  • Control panels
  • All Electrical Machinery
  • Anywhere power is distributed
  • Industrial Automation
  • Variable speed/frequency drivers
  • Medical technology
  • Military Technology
