Name: 1746952
Brand: Phoenix Contact
SKU: 1746952
Price: 3.21000 USD
Availability: InStock

new-10%

1746952

Manufacturer part number:1746952

Manufacturer:Phoenix Contact

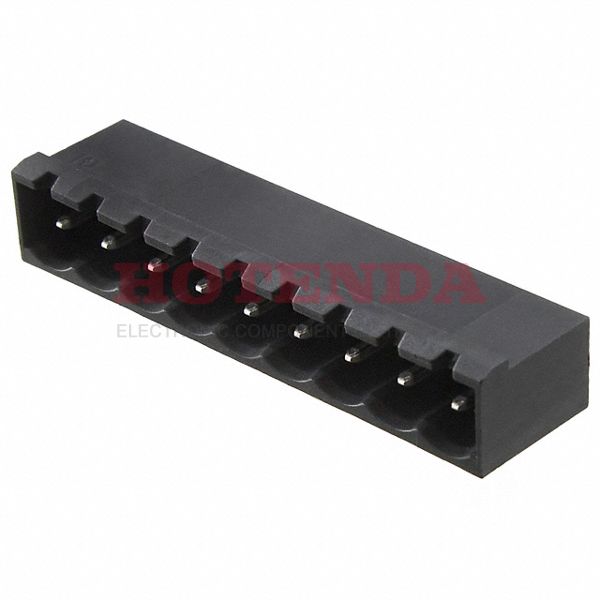

Description:Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MSTBA Tin

Case Package:SOT-23

Datasheet:1746952 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Weight	4.20001g
Packaging	Bulk
Series	COMBICON MSTBA
Published	2008
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	9
Color	Black
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Number of Decks	1
Number of Ways	9
Safety Approval	CB; CSA; CUL; GOST; UL; VDE
Header Orientation	90°, Right Angle
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1746952 Product Details

1746952 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON MSTBA Series.It is mounted by Through Hole.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
