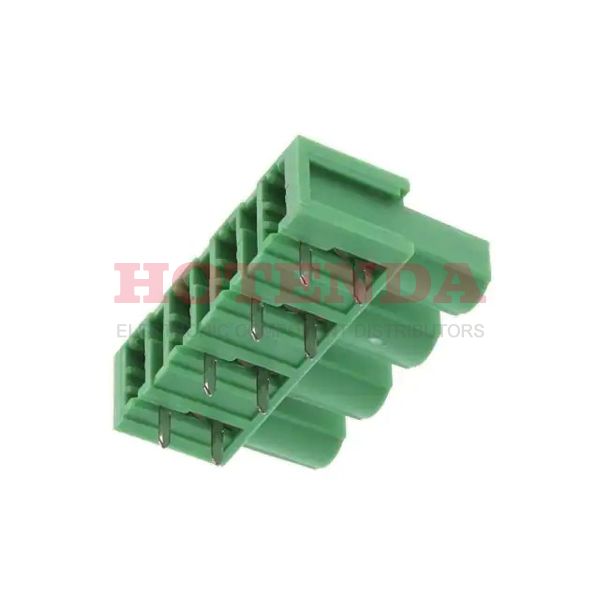

Name: 1745807
Brand: Phoenix Contact
SKU: 1745807
Price: 5.20000 USD
Availability: InStock

new-10%

1745807

Manufacturer part number:1745807

Manufacturer:Phoenix Contact

Description:1745807 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1745807 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	6.281007g
Packaging	Bulk
Published	2011
Series	COMBICON GIC
Feature	Retention Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Socket
Type	Header, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	630V
Pitch	0.300 7.62mm
Insulation Height	0.402 10.20mm
Current Rating	16A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Number of Levels	1
Current	10A
Voltage - UL	300V
Number of Decks	1
Voltage - IEC	1kV
Number of Ways	4
Safety Approval	UL
Header Orientation	90°, Right Angle
Current - IEC	16A
Number of Positions Per Level	4
Height	19mm
Length	13.7mm
Width	30.48mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1745807 Product Details

1745807 Overview

A Socket package is included with it.Through Hole is the type of mounting for the device.It is necessary to use a Bulk case for packaging the product.As a product of the COMBICON GIC Series, it can be found in this category.Many aspects of its Retention Latches feature increase its effectiveness.Through Hole is mounting the part.It shares many benefts with other Header, Female Sockets products.
