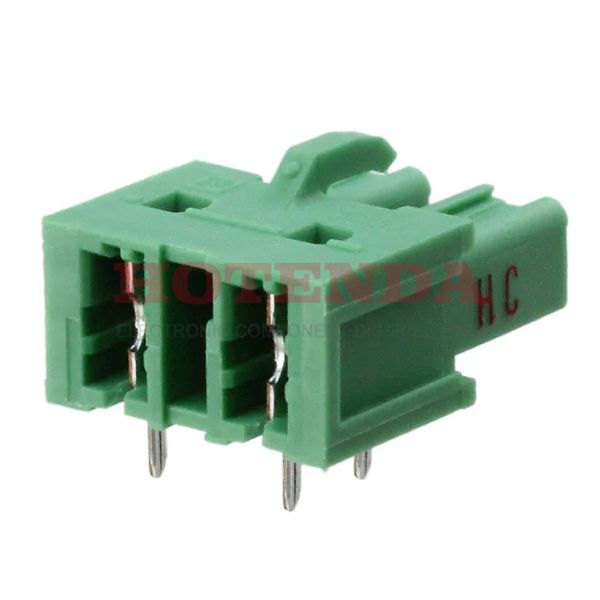

Name: 1745784
Brand: Phoenix Contact
SKU: 1745784
Price: 2.62000 USD
Availability: InStock

new-10%

1745784

Manufacturer part number:1745784

Manufacturer:Phoenix Contact

Description:1745784 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1745784 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	4.134013g
Packaging	Bulk
Published	2012
Series	COMBICON GIC
Feature	Retention Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	630V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Right Angle
Depth	19mm
Insulation Height	0.402 10.20mm
Reach Compliance Code	unknown
Current Rating	16A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	16A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	1kV
Number of Ways	2
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	2
Length	15.24mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1745784 Product Details

1745784 Overview

Through Hole is the mounting type of the device.We pack the product in a Bulk case.It is part of the COMBICON GIC Series of products.Also, there's PA, UL 94V0, to name a few.There are a number of advantages to its Retention Latches feature.You've got Through Hole mounted on the part.There are many benefits that this part shares with other Header, Female Sockets products as well.
