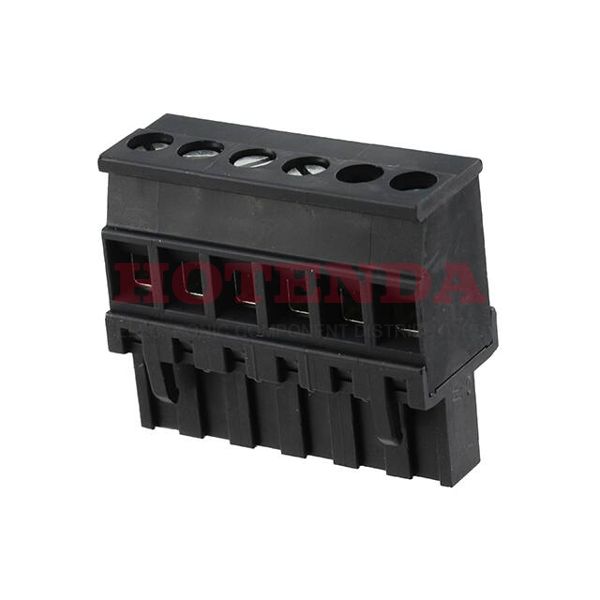

Name: 1736506
Brand: Phoenix Contact
SKU: 1736506
Price: 7.34000 USD
Availability: InStock

new-10%

1736506

Manufacturer part number:1736506

Manufacturer:Phoenix Contact

Description:1736506 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1736506 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	12.950005g
Packaging	Bulk
Published	2011
Series	COMBICON MVSTBR
Feature	Retention Latches (Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	6
Color	Black
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, UL 94V-0, SAFETY APPROVAL: CSA
Pitch	0.200 5.08mm
Insulation Height	1.024 26.01mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Levels	1
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	CB; CCA; CUL; GOST; UL; VDE
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	26mm
Length	12.6mm
Width	31.48mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1736506 Product Details

1736506 Overview

Packaging for this item is Screw, Socket.The device's mounting type is Free Hanging (In-Line).Packaged in a Bulk case.A member of the COMBICON MVSTBR Series.In addition, there are other features such as PA, UL 94V-0, SAFETY APPROVAL: CSA, to mention only a few.A number of benefits can be derived from the Retention Latches (Wire Side) feature of this application.Mounting of the part is based on Free Hanging.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
