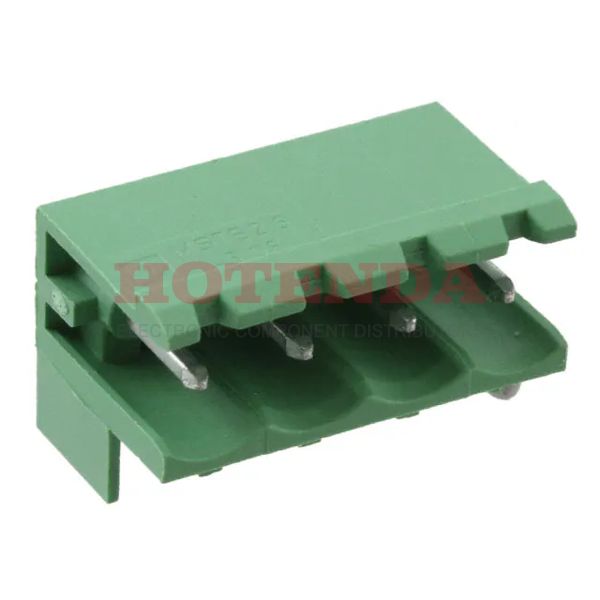

Name: 1735866
Brand: Phoenix Contact
SKU: 1735866
Price: 2.55000 USD
Availability: InStock

new-10%

1735866

Manufacturer part number:1735866

Manufacturer:Phoenix Contact

Description:1735866 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1735866 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	152.999995g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBW
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.490 12.44mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Number of Decks	1
Voltage - IEC	400V
Number of Ways	4
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	15.95mm
Length	20.32mm
Width	20.32mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1735866 Product Details

1735866 Overview

A Plug packaging is included.There is a Through Hole mounting type for the device.Packaged in a Bulk case.Product number COMBICON MSTBW belongs to the COMBICON MSTBW Series.The part is mounted by Through Hole.In addition to its benefits, this part also shares many with the other products in the Header, Male Pins, Shrouded (2 Side) series.
