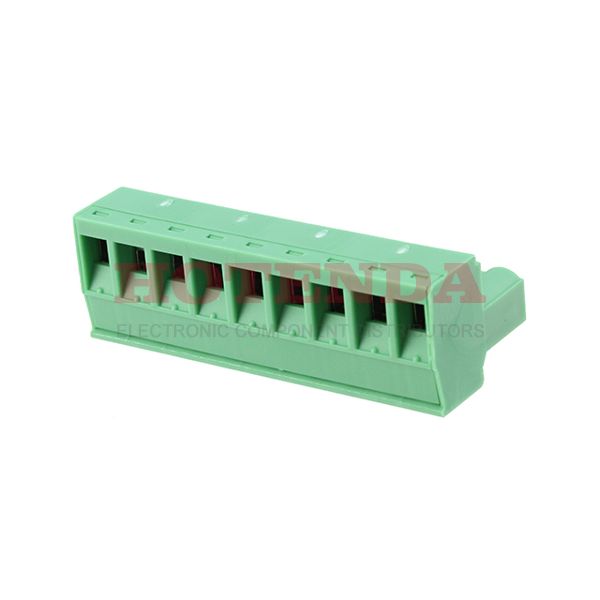

Name: 1734207
Brand: Phoenix Contact
SKU: 1734207
Price: 16.05000 USD
Availability: InStock

new

1734207

Manufacturer part number:1734207

Manufacturer:Phoenix Contact

Description:1734207 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1734207 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	129.999998g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBT
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	9
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Number of Positions Per Level	9
Screw Size	M3
Wire Cross Section	2.5 mm2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2

1734207 Product Details

1734207 Overview

The product comes in a package of Screw.This device's mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.This product is part of the COMBICON MSTBT Series.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.The part is mounted by Free Hanging.Other Plug, Female Sockets products share lots of benefits with this part.
