Name: 1718106
Brand: Phoenix Contact
SKU: 1718106
Price: 16.16000 USD
Availability: InStock

new

1718106

Manufacturer part number:1718106

Manufacturer:Phoenix Contact

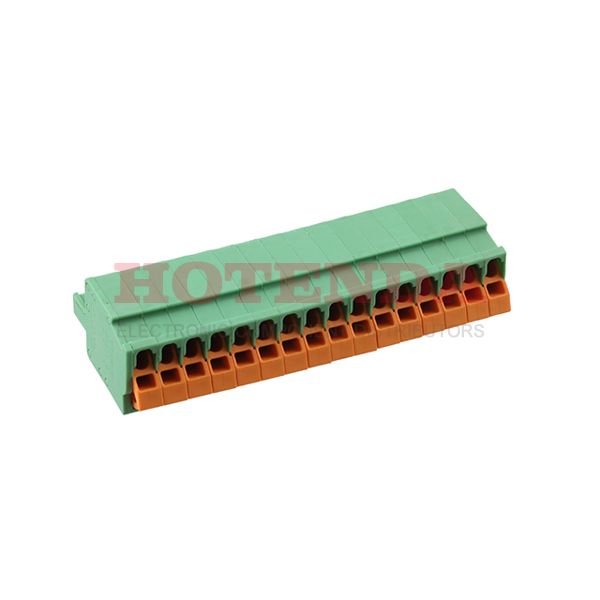

Description:Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON QC Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1718106 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mounting Type	Free Hanging (In-Line)
Mount	Free Hanging
Housing Material	Polyamide (PA), Nylon
Weight	400.000006g
Published	2011
Series	COMBICON QC
Packaging	Bulk
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	IDC
ECCN Code	EAR99
Connector Type	IDC, IDT
Type	Plug, Female Sockets
Number of Positions	16
Color	Green
Number of Rows	1
Voltage - Rated	500V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	33.4mm
Insulation Height	0.772 19.60mm
Current Rating	12A
Termination Style	Screwless - IDC
Voltage	300V
Max Supply Voltage	630V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-24 AWG
Voltage - IEC	1kV
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1718106 Product Details

1718106 Overview

Currently, it is packaged in IDC, IDT.Mounting type Free Hanging (In-Line) is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the COMBICON QC Series, it is one of the most popular.There are also other features, like PA, UL 94V-0, to name a few.A number of benefits can be derived from the Retention Latches (Non-Wire Side) feature of this application.Free Hanging is the mounting point for the part.This chip shouldn't have a supply voltage over 630V.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
