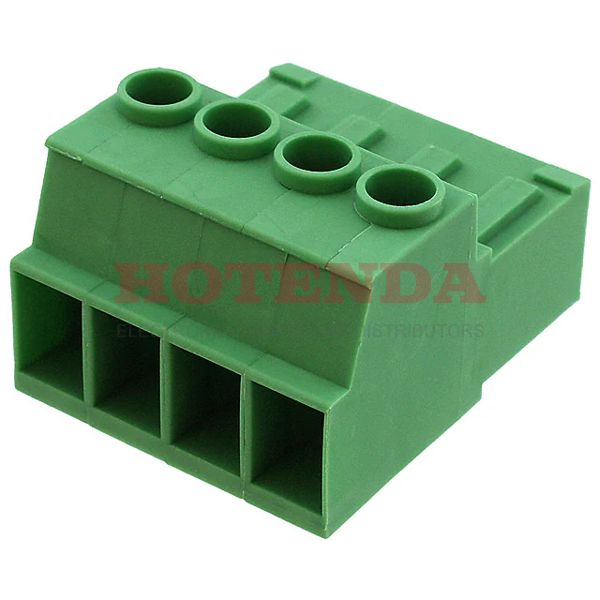

Name: 1709063
Brand: Phoenix Contact
SKU: 1709063
Price: 13.60000 USD
Availability: InStock

new

1709063

Manufacturer part number:1709063

Manufacturer:Phoenix Contact

Description:1709063 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1709063 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	1.200205kg
Packaging	Bulk
Published	2011
Series	COMBICON IPC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Plug, Screw
Type	Plug, Male Pins
Number of Positions	4
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
Pitch	0.300 7.62mm
Orientation	Right Angle
Insulation Height	0.902 22.90mm
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Max Supply Voltage	1kV
Max Current Rating	41A
Number of Levels	1
Current	41A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	8 AWG
Number of Decks	1
Wire Gauge or Range - AWG	8-24 AWG
Torque - Screw	0.7-0.8 Nm (6.2-7.1 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	10mm
Number of Positions Per Level	4
Screw Size	M3
Height	30.48mm
Length	30.48mm
Width	36.55mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1709063 Product Details

1709063 Overview

The packaging is Plug, Screw.This device is mounted in the Free Hanging (In-Line) position.We pack the product in a Bulk case.The product is part of the COMBICON IPC Series.It is mounted by Free Hanging.This chip should not be supplied with voltages greater than zero.There are a lot of advantages this part has in common with other Plug, Male Pins parts.
