Name: 1609565
Brand: Phoenix Contact
SKU: 1609565
Price: 3.44000 USD
Availability: InStock

new-10%

1609565

Manufacturer part number:1609565

Manufacturer:Phoenix Contact

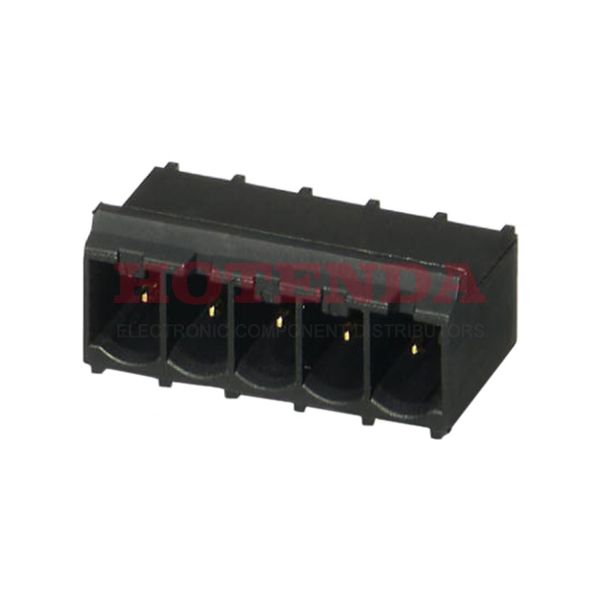

Description:Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) PROFINET MSTB Polyamide (PA), Nylon Gold Copper Alloy

Case Package:SOT-23

Datasheet:1609565 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Operating Temperature	-40°C~70°C
Packaging	Bulk
Series	PROFINET MSTB
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Voltage - Rated	24V
Additional Feature	PA, 94V-0
Pitch	0.200 5.08mm
Insulation Height	0.516 13.11mm
Reach Compliance Code	unknown
Current Rating	16A
Termination Style	Solder
Approval Agency	cULus
Voltage	24V
Contact Tail Length	0.122 3.10mm
Max Current Rating	16A
Number of Levels	1
Current	16A
Contact Mating Finish	Gold
Number of Decks	1
Number of Ways	5
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	5
Fastening Method	CONNECTOR
Length	27.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1609565 Product Details

1609565 Overview

The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the PROFINET MSTB Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.Through Hole represents the mounting point for the part.-40°C~70°C Operating Temperature is the default operating temperature for the device.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
