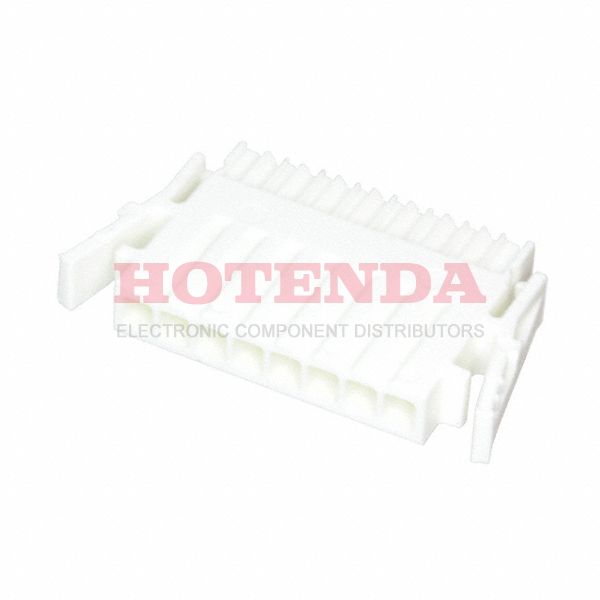

1015458

1015458

1015458

Phoenix Contact

1015458 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1015458 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Operating Temperature-40°C
PackagingBulk
Series COMBICON PTCM
Feature Latch Lock
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Type Plug Housing for Female Sockets
Number of Positions 8
Color White
Pitch 0.098 2.50mm
Insulation Height 0.154 3.90mm
Termination Style Crimp
Number of Levels 1
Voltage - UL 150V
Wire Gauge or Range - AWG 18-22 AWG
Voltage - IEC 160V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-0.75mm2
Wire Strip Length 4.1-4.5mm
Current - IEC 6A
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:13328 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.603153$0.603153
10$0.569012$5.69012
100$0.536804$53.6804
500$0.506419$253.2095
1000$0.477753$477.753

1015458 Product Details

1015458 Overview


Free Hanging (In-Line) is the mounting type of the device.Packaging for the product is carried out via a Bulk case.The product is a part of the COMBICON PTCM Series.As a result of its Latch Lock feature, it possesses a great deal of power.Running in -40°C Operating Temperature.This part shares lots of benefits with other Plug Housing for Female Sockets products.

1015458 Features


COMBICON PTCM series

1015458 Applications


There are a lot of Phoenix Contact 1015458 Terminal Blocks applications.

  • Communication
  • All Electrical Machinery
  • Instrumentation
  • Electrical substations
  • Energy efficient lighting (LED)
  • Telecommunications
  • Measuring & Control Technology
  • Refrigeration control
  • Variable speed/frequency drivers
  • Data Technology
