S6-56R-E datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available on our website
SOT-23
S6-56R-E Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Weight
176.901024g
Packaging
Bulk
Series
Pan-Term®
Published
2004
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp, Funnel Opening
ECCN Code
EAR99
Color
Blue
Gender
Female
HTS Code
8536.90.40.00
Contact Finish
Tin
Wire Gauge
6 AWG
Wire/Cable Gauge
6 AWG
Terminal and Terminal Block Type
RING TERMINAL
Safety Approval
CSA; UL
Insulation
Non-Insulated
Terminal Type
Flat Sided
Stud/Tab Size
5/16 Stud
Length
35.56mm
Width
14.2mm
Thickness
0.070 1.78mm
Length - Overall
1.400 35.56mm
Diameter - Inside
5.59 mm
Width - Outer Edges
0.560 14.22mm
REACH SVHC
Unknown
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:3387 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.59000
$1.59
10
$1.54800
$15.48
25
$1.50880
$37.72
50
$1.46900
$73.45
100
$1.42940
$142.94
500
$1.38968
$694.84
S6-56R-E Product Details

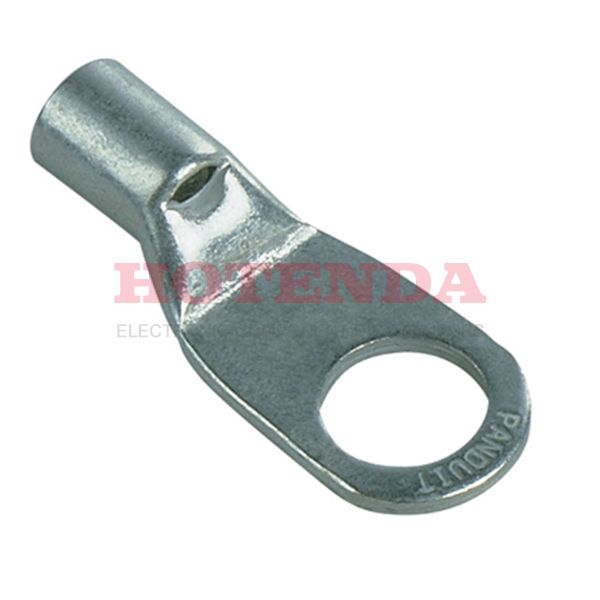

Description: Panduit Terminals Ring Connectors S6-56R-E are tubular ring terminals designed for use with 6 studs of size 5/16". They are made of tin-plated copper for superior electrical conductivity and corrosion resistance. The terminals feature a flared entry for easy wire insertion and a flared exit for secure wire retention.
Features: - Made of tin-plated copper for superior electrical conductivity and corrosion resistance - Flared entry for easy wire insertion - Flared exit for secure wire retention - UL Listed and CSA Certified
Applications: Panduit Terminals Ring Connectors S6-56R-E are suitable for a variety of applications, including automotive, marine, and industrial wiring. They are commonly used to connect wires to electrical components such as switches, relays, and circuit breakers.
