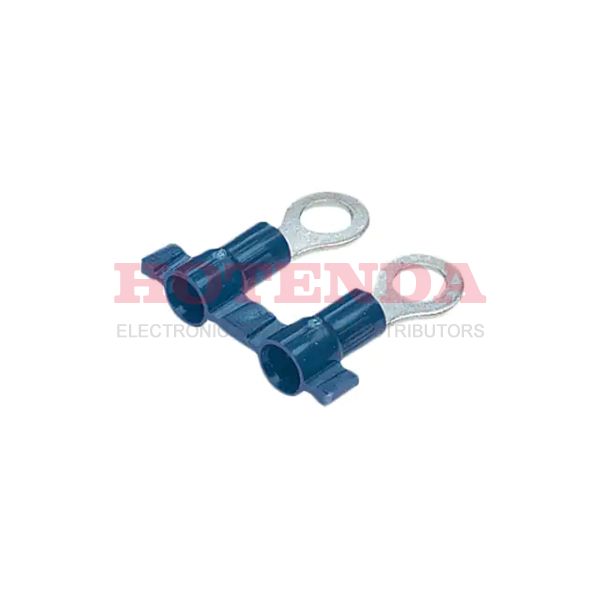

PV14-10RB-3K datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available on our website
SOT-23
PV14-10RB-3K Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Material - Insulation
Vinyl
Packaging
Tape & Reel (TR)
Series
Pan-Term®
Published
2005
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
Color
Blue
Gender
Female
HTS Code
8536.90.40.00
Depth
7.87mm
Wire Gauge
14-16 AWG
Wire Gauge (Max)
14 AWG
Wire Gauge (Min)
16 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.170 (4.32mm)
Insulation
Insulated
Terminal Type
Circular
Wire Cross Section
2.5 mm2
Stud/Tab Size
10 Stud
Length
21.84mm
Thickness
0.031 0.79mm
Length - Overall
0.860 21.84mm
Width - Outer Edges
0.310 7.87mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:19281 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.400000
$0.4
10
$0.377358
$3.77358
100
$0.355999
$35.5999
500
$0.335848
$167.924
1000
$0.316837
$316.837
PV14-10RB-3K Product Details
Panduit Terminals - Ring Connectors PV14-10RB-3K are designed for use in a variety of electrical applications. These terminals are made from high-quality materials and feature a unique design that allows for easy installation and secure connections. The terminals are designed to fit a variety of wire sizes, including #10-12 AWG. The terminals are also color-coded for easy identification.
Features: - Made from high-quality materials - Unique design for easy installation and secure connections - Color-coded for easy identification - Fits a variety of wire sizes, including #10-12 AWG
Applications: Panduit Terminals - Ring Connectors PV14-10RB-3K are ideal for use in a variety of electrical applications, including automotive, industrial, and residential wiring. They can be used to connect wires to switches, outlets, and other electrical components. They are also suitable for use in low-voltage applications.
