PN18-8R-M datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available on our website
SOT-23
PN18-8R-M Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Weight
970.687672g
Material - Insulation
Polyamide (PA), Nylon
Packaging
Bulk
Series
Pan-Term®
Published
2008
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
Color
Red
HTS Code
8536.90.40.00
Orientation
Straight
Depth
7.9mm
Wire Gauge
18-22 AWG
Wire Gauge (Max)
22 AWG
Wire Gauge (Min)
18 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Insulated
Terminal Type
Circular
Wire Cross Section
1.5 mm2
Stud/Tab Size
8 Stud
Terminal Gender
FEMALE
Length
21.8mm
Width
7.87mm
Thickness
0.032 0.81mm
Length - Overall
0.860 21.84mm
Width - Outer Edges
0.310 7.87mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:14915 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.241782
$0.241782
10
$0.228096
$2.28096
100
$0.215185
$21.5185
500
$0.203004
$101.502
1000
$0.191514
$191.514

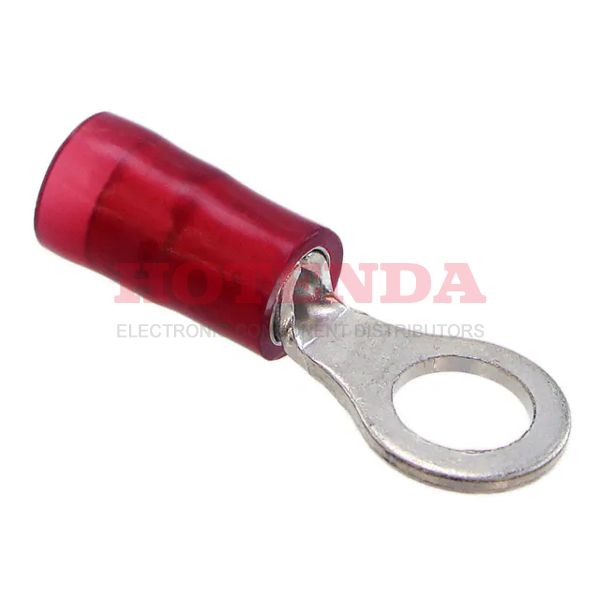

PN18-8R-M Product Details
Panduit Terminals - Ring Connectors PN18-8R-M are a type of electrical connector designed for use in a variety of applications. These terminals feature a ring tongue design with a 18-22AWG size and a 21.8mm x 7.9mm size. The terminals are made of tin and come in bulk packaging.
These terminals are designed for use in a variety of applications, including automotive, industrial, and consumer electronics. They are suitable for use in applications where a secure connection is required, such as in the wiring of electrical systems. The terminals are designed to provide a reliable connection and are easy to install.
The terminals are designed to be durable and reliable, and are resistant to corrosion and vibration. They are also designed to be resistant to temperature extremes, making them suitable for use in a variety of environments. The terminals are also designed to be easy to use, with a simple installation process.
Panduit Terminals - Ring Connectors PN18-8R-M are a reliable and durable solution for a variety of applications. They are designed to provide a secure connection and are easy to install. They are also resistant to corrosion and vibration, making them suitable for use in a variety of environments.
