P6-56R-T datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available on our website
SOT-23
P6-56R-T Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging, Wire
Mounting Type
Free Hanging (In-Line)
Weight
952.543977g
Packaging
Bulk
Series
Pan-Term®
Published
2007
Feature
Brazed Seam
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
Color
Blue
Gender
Female
HTS Code
8536.90.40.00
Depth
15.75mm
Contact Finish
Tin
Wire Gauge
6 AWG
Wire/Cable Gauge
6 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Terminal Type
Circular
Stud/Tab Size
5/16 Stud
Diameter
8.13mm
Length
33.782mm
Width
15.7mm
Thickness
0.045 1.14mm
Length - Overall
1.330 33.78mm
Diameter - Inside
5.84 mm
Width - Outer Edges
0.620 15.75mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:6526 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.542724
$0.542724
10
$0.512004
$5.12004
100
$0.483022
$48.3022
500
$0.455681
$227.8405
1000
$0.429888
$429.888

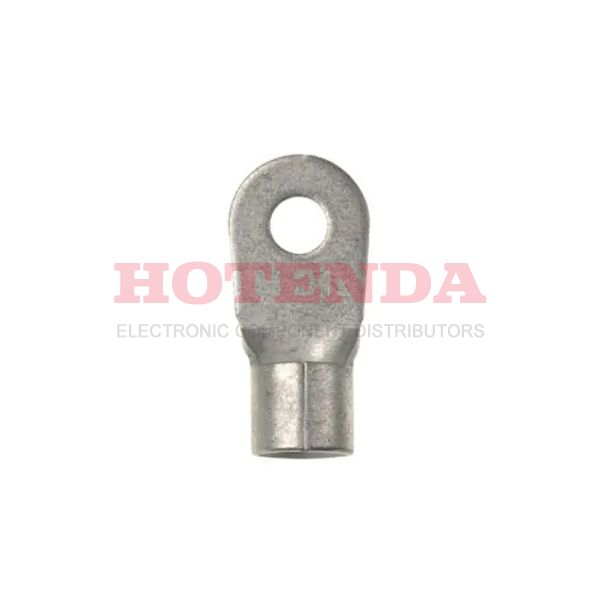

P6-56R-T Product Details
Panduit Terminals - Ring Connectors P6-56R-T are designed for use in a variety of electrical applications. These terminals are made from high-quality materials and feature a crimp-style connection for easy installation. The terminals are designed to accept 6 AWG wire and feature a #5/16 crimp size. The terminals are designed to provide a secure connection and are suitable for use in a variety of applications, including automotive, industrial, and commercial.
Features: - Made from high-quality materials - Crimp-style connection for easy installation - Accepts 6 AWG wire - #5/16 crimp size - Provides a secure connection
