P10-10R-X datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available on our website
SOT-23
P10-10R-X Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Packaging
Bulk
Series
Pan-Term®
Published
2009
Feature
Brazed Seam, Serrated Termination
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
Contact Finish
Tin
Wire Gauge
10-14 AWG
Wire Gauge (Max)
14 AWG
Wire Gauge (Min)
10 AWG
Insulation
Non-Insulated
Terminal Type
Circular
Stud/Tab Size
10 Stud
Length
20.574mm
Thickness
0.040 1.02mm
Length - Overall
0.810 20.57mm
Width - Outer Edges
0.380 9.65mm
RoHS Status
RoHS Compliant
In-Stock:1532 items

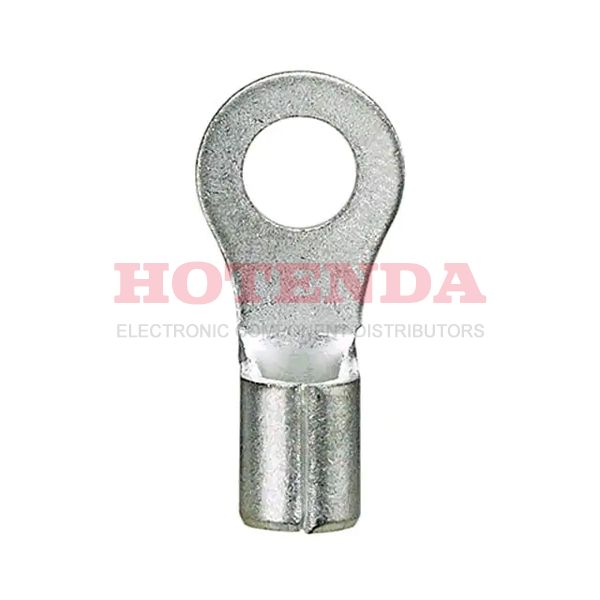

P10-10R-X Product Details
Panduit Terminals - Ring Connectors P10-10R-X are designed to provide a secure connection between two wires. These terminals are made from high-quality materials and feature a 10-14 AWG #10 ring connector. The terminals are designed to be easy to install and provide a reliable connection. They are suitable for a variety of applications, including automotive, industrial, and commercial. The terminals are UL listed and CSA certified for safety and reliability. They are also RoHS compliant and come with a limited lifetime warranty. With their superior performance and reliability, Panduit Terminals - Ring Connectors P10-10R-X are the perfect choice for any wiring project.
