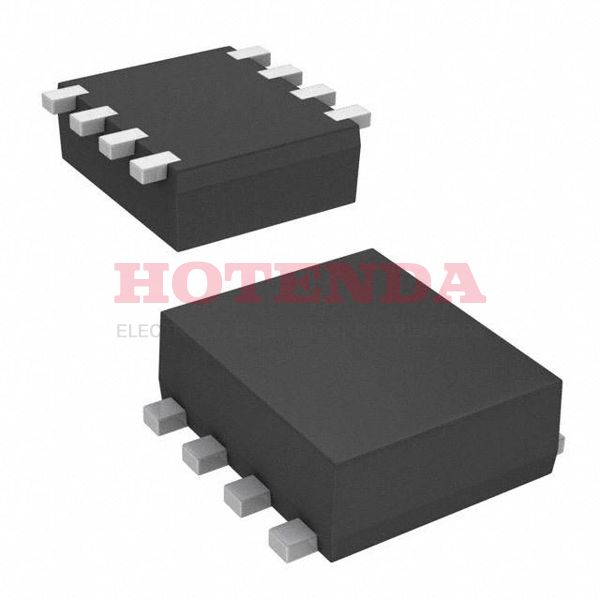

MOSFET, DUAL N-CH, 20V, 4A, WSMINI8-F1-B - More Details
SOT-23
MTM78E2B0LBF Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
10 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
8-SMD, Flat Lead
Number of Pins
8
Transistor Element Material
SILICON
Operating Temperature
150°C TJ
Packaging
Tape & Reel (TR)
Published
2011
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
8
ECCN Code
EAR99
Subcategory
FET General Purpose Power
Max Power Dissipation
700mW
Peak Reflow Temperature (Cel)
NOT SPECIFIED
Reach Compliance Code
unknown
[email protected] Reflow Temperature-Max (s)
NOT SPECIFIED
Base Part Number
MTM78E2B
Number of Elements
2
Element Configuration
Single
Operating Mode
ENHANCEMENT MODE
Power Dissipation
700mW
Turn On Delay Time
200 ns
Power - Max
150mW
FET Type
2 N-Channel (Dual)
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
25m Ω @ 2A, 4V
Vgs(th) (Max) @ Id
1.3V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds
1100pF @ 10V
Rise Time
500ns
Drain to Source Voltage (Vdss)
20V
Fall Time (Typ)
1.5 μs
Turn-Off Delay Time
2 μs
Continuous Drain Current (ID)
4A
Gate to Source Voltage (Vgs)
12V
Drain Current-Max (Abs) (ID)
4A
Drain-source On Resistance-Max
0.025Ohm
DS Breakdown Voltage-Min
20V
FET Technology
METAL-OXIDE SEMICONDUCTOR
FET Feature
Standard
Nominal Vgs
850 mV
Height
600μm
Length
2mm
Width
1.7mm
REACH SVHC
No SVHC
RoHS Status
RoHS Compliant
In-Stock:10596 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
MTM78E2B0LBF Product Details
Description:
The Panasonic Transistors - FETs, MOSFETs - Arrays MTM78E2B0LBF is a dual N-channel MOSFET with a maximum drain-source voltage of 20V and a maximum drain current of 4A. It is packaged in a WSMINI8-F1-B package.
Features:
• Maximum drain-source voltage: 20V • Maximum drain current: 4A • Package: WSMINI8-F1-B • Low on-resistance • Low gate charge • Low input capacitance • High speed switching
Applications:
The Panasonic Transistors - FETs, MOSFETs - Arrays MTM78E2B0LBF is suitable for a wide range of applications, including power management, motor control, and switching applications. It can be used in power supplies, DC-DC converters, and other power management circuits. It can also be used in motor control circuits, such as brushless DC motor drivers, and in switching applications, such as relay drivers.
