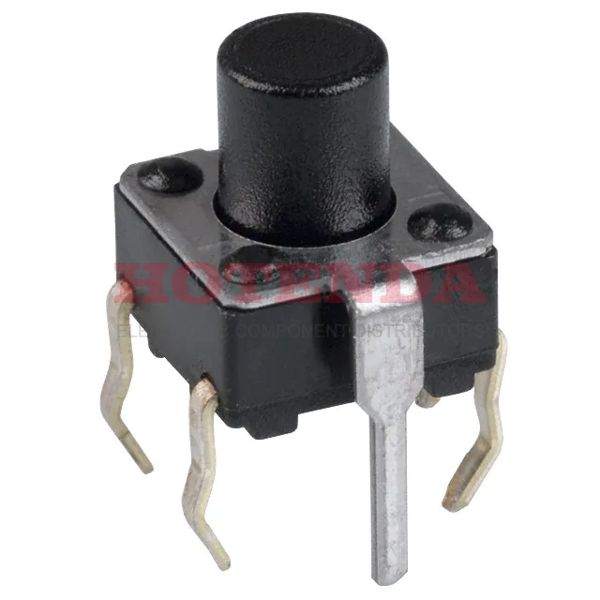

EVQ-PBC07K

Manufacturer part number:EVQ-PBC07K

Manufacturer:Panasonic Electronic Components

Description:Switch Tactile N.O. SPST Round Button PC Pins 0.02A 15VDC 1N Thru-Hole Bulk

Case Package:SOT-23

Datasheet:EVQ-PBC07K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Operating Temperature	-20°C~70°C
Packaging	Bulk
Published	2011
Series	EVQPB
JESD-609 Code	e4
Feature	Grounding Pin
Pbfree Code	yes
Part Status	Last Time Buy
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	PC Pin
ECCN Code	EAR99
Terminal Finish	GOLD/SILVER
Voltage - Rated	15V
HTS Code	8536.50.90.40
Voltage - Rated DC	15V
Packing Method	BAG; BOX
Orientation	Straight
Depth	7.8mm
Current Rating	20mA
Termination Style	PC Pin
Actuator Type	Standard
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Resistance	50mOhm
Insulation Resistance	50MOhm
Contact Current(DC)-Max	0.02A
Max Current Rating	20mA
Electrical Life	100000 cycles
Throw Configuration	SPST
Illumination	Non-Illuminated
Max Voltage Rating (DC)	15V
Mechanical Life	100,000 Cycles
Switch Type	KEYPAD SWITCH
Contact Current Rating	20mA
Operating Force	100gf
Illumination Type	Illuminated, Non-Illuminated
Actuator Orientation	Top Actuated
Contact (DC) Max Rating R Load	[email protected]
Outline	6.00mm x 6.00mm
Contact Rating @ Voltage	0.02A @ 15VDC
Switch Travel	0.25mm
Actuator Height off PCB, Vertical	7.00mm
Number of Switches	1
Contact Bounce Time-Max	8ms
Height	7mm
Length	6mm
Actuator Length	3.1mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Lead Free	Lead Free

EVQ-PBC07K Product Details

Description:

The Panasonic EVQ-PBC07K is a tactile switch with a single pole single throw (SPST) configuration. It has a round button and PC pins for easy installation. It has a rated current of 0.02A and a rated voltage of 15VDC. It is a through-hole bulk switch.
