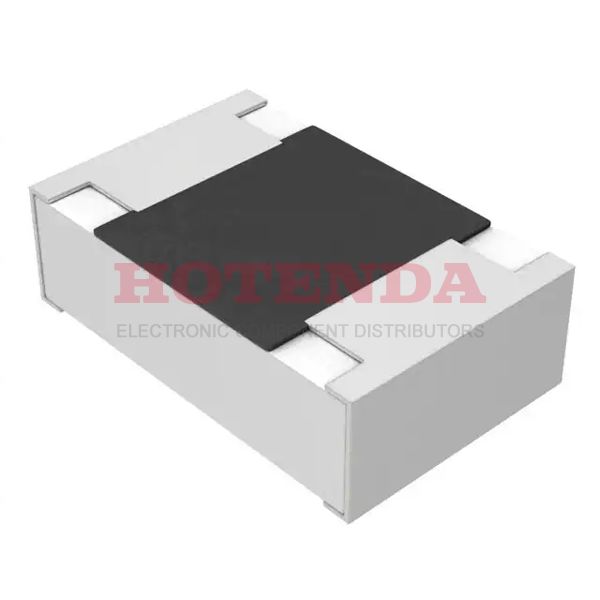

Res Thick Film 0402 100K Ohm 1% 1/10W 200ppm/C Molded SMD SMD Punched Carrier T/R
SOT-23
ERJ-U02F1003X Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Weight
793.786648μg
Packaging
Cut Tape
Tolerance
1%
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
SMD/SMT
Temperature Coefficient
200 ppm/°C
Resistance
100kOhm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Composition
Thick Film
Voltage - Rated
50V
Power Rating
100mW
Voltage - Rated DC
50V
Current Rating
1A
Case Code (Metric)
1005
Case Code (Imperial)
0402
Height
350μm
Length
1mm
Width
500μm
Radiation Hardening
No
REACH SVHC
Unknown
RoHS Status
ROHS3 Compliant
In-Stock:71866 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.12000
$0.12
500
$0.1188
$59.4
1000
$0.1176
$117.6
1500
$0.1164
$174.6
2000
$0.1152
$230.4
2500
$0.114
$285
ERJ-U02F1003X Product Details
Description: The Panasonic Chip Resistor - Surface Mount ERJ-U02F1003X is a thick film resistor with a 0402 size package. It has a resistance of 100K Ohms and a tolerance of 1%. It has a power rating of 1/10W and a temperature coefficient of 200ppm/C. It is a molded SMD resistor with a punched carrier tape and reel.
Features: - 0402 size package - 100K Ohm resistance - 1% tolerance - 1/10W power rating - 200ppm/C temperature coefficient - Molded SMD - Punched carrier tape and reel
Applications: The Panasonic Chip Resistor - Surface Mount ERJ-U02F1003X is suitable for use in a variety of applications, including automotive, industrial, and consumer electronics. It can be used in circuits that require high precision and stability, such as in voltage regulation, signal conditioning, and power management.
