Name: ERJ-P06F3600V
Brand: Panasonic Electronic Components
SKU: ERJ-P06F3600V
Price: 0.02000 USD
Availability: InStock

new-10%

ERJ-P06F3600V

Manufacturer part number:ERJ-P06F3600V

Manufacturer:Panasonic Electronic Components

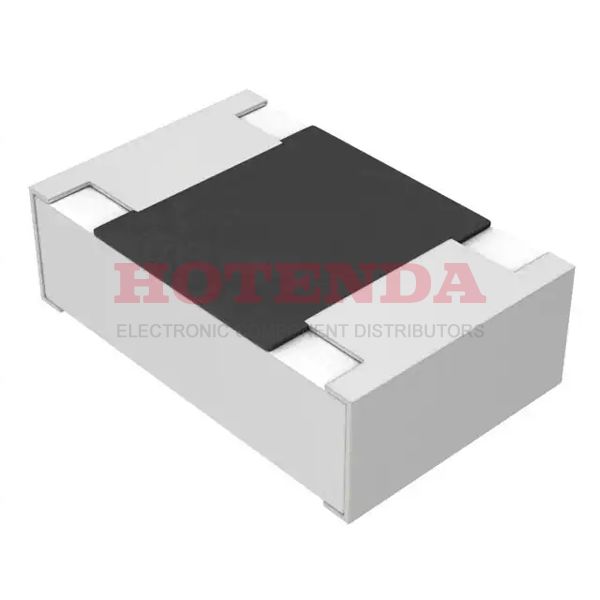

Description:PANASONIC ERJP06F3600V RESISTOR, THICK FILM, 360 OHM, 0.5W, 1%

Case Package:SOT-23

Datasheet:ERJ-P06F3600V Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Package / Case	0805 (2012 Metric)
Terminal Shape	WRAPAROUND
Weight	5.499807mg
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Series	ERJ
Size / Dimension	0.079Lx0.049W 2.00mmx1.25mm
Tolerance	±1%
JESD-609 Code	e3
Feature	Automotive AEC-Q200, Pulse Withstanding
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
Temperature Coefficient	±100ppm/°C
Resistance	360Ohm
Terminal Finish	Tin (Sn)
Composition	Thick Film
Power (Watts)	0.5W 1/2W
Voltage - Rated	400V
Additional Feature	IEC60115-8
Power Rating	500mW
Voltage - Rated DC	400V
Packing Method	TR, PUNCHED, 7 INCH
Depth	1.25mm
Construction	RECTANGULAR PACKAGE
Resistor Type	FIXED RESISTOR
Military Standard	Not
Case Code (Metric)	2012
Rated Power Dissipation (P)	0.5W
Case Code (Imperial)	0805
Height	600μm
Height Seated (Max)	0.028 0.70mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Ratings	AEC-Q200

ERJ-P06F3600V Product Details

Description:

The Panasonic ERJ-P06F3600V is a thick film chip resistor with a resistance value of 360 ohms and a power rating of 0.5 watts. It has a tolerance of 1% and is designed for surface mount applications.

Features:
• Resistance value of 360 ohms
• Power rating of 0.5 watts
• Tolerance of 1%
• Designed for surface mount applications
• Low profile design
• High reliability
• RoHS compliant

Applications:
The Panasonic ERJ-P06F3600V chip resistor is suitable for a wide range of applications, including automotive, industrial, and consumer electronics. It is suitable for use in power supplies, motor control circuits, and other high-current applications.
