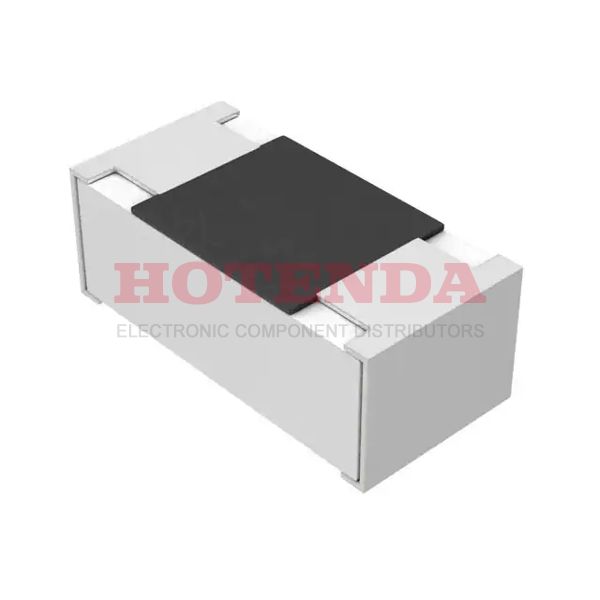

Res Thick Film 0201 120K Ohm 5% 1/20W 200ppm/C Molded SMD Pressed Carrier T/R
SOT-23
ERJ-1GEJ124C Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
11 Weeks
Contact Plating
Tin
Mount
Surface Mount
Package / Case
0201 (0603 Metric)
Terminal Shape
WRAPAROUND
Operating Temperature
-55°C~125°C
Packaging
Tape & Reel (TR)
Published
2005
Series
ERJ
Size / Dimension
0.024Lx0.012W 0.60mmx0.30mm
Tolerance
±5%
JESD-609 Code
e3
Pbfree Code
yes
Part Status
Not For New Designs
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Temperature Coefficient
±200ppm/°C
Resistance
120kOhm
Composition
Thick Film
Power (Watts)
0.05W 1/20W
Voltage - Rated
25V
Power Rating
50mW
Voltage - Rated DC
15V
Packing Method
TR, PRESSED, 7 INCH
Max Power Dissipation
50mW
Depth
300μm
Construction
Rectangular
Resistor Type
FIXED RESISTOR
Military Standard
Not
Reference Standard
IEC60115-8
Case Code (Metric)
0603
Rated Power Dissipation (P)
0.05W
Case Code (Imperial)
0201
Height
254μm
Height Seated (Max)
0.010 0.26mm
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:70079 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.029760
$0.02976
500
$0.021882
$10.941
1000
$0.018235
$18.235
2000
$0.016730
$33.46
5000
$0.015635
$78.175
10000
$0.014544
$145.44
15000
$0.014066
$210.99
50000
$0.013831
$691.55
ERJ-1GEJ124C Product Details
The Panasonic Chip Resistor - Surface Mount ERJ-1GEJ124C is a high-performance, reliable resistor designed for use in a variety of applications. This resistor features a 0201 size, a resistance of 120K Ohms, a tolerance of 5%, a power rating of 1/20W, and a temperature coefficient of 200ppm/C. It is constructed with a thick film, molded SMD pressed carrier, and is available in a T/R package. This resistor is ideal for use in high-density circuit boards, as it is small and lightweight. It is also highly reliable, with a long service life and excellent temperature stability. The Panasonic Chip Resistor - Surface Mount ERJ-1GEJ124C is an ideal choice for a variety of applications.
