Name: ERA-3ARB2872V
Brand: Panasonic Electronic Components
SKU: ERA-3ARB2872V
Price: 0.19000 USD
Availability: InStock

new-10%

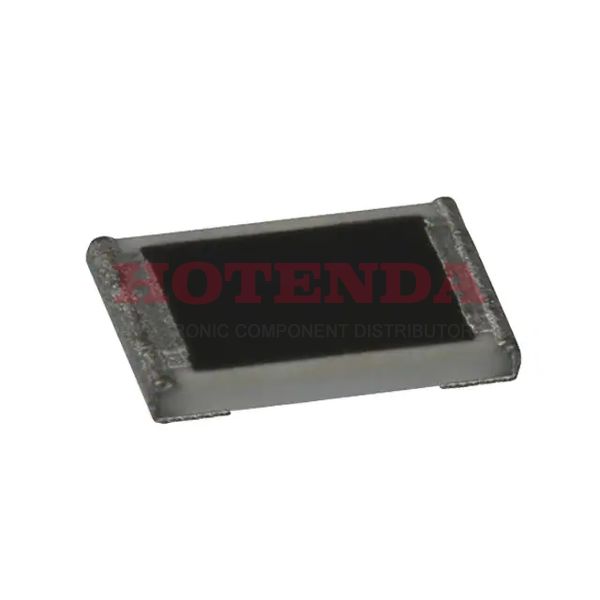

ERA-3ARB2872V

Manufacturer part number:ERA-3ARB2872V

Manufacturer:Panasonic Electronic Components

Description:PANASONIC ELECTRONIC COMPONENTS - ERA3ARB2872V - RES, THIN FILM, 28K7, 0.1%, 0.1W, 0603

Case Package:SOT-23

Datasheet:ERA-3ARB2872V Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Package / Case	0603 (1608 Metric)
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Series	ERA-3A
Size / Dimension	0.063Lx0.031W 1.60mmx0.80mm
Tolerance	±0.1%
JESD-609 Code	e3
Feature	Automotive AEC-Q200
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Temperature Coefficient	±10ppm/°C
Resistance	28.7kOhm
Terminal Finish	Tin (Sn) - with Nickel (Ni) barrier
Composition	Thin Film
Power (Watts)	0.1W 1/10W
Voltage - Rated	75V
Additional Feature	STANDARD: IEC60115-8
Power Rating	100mW
Voltage - Rated DC	75V
Packing Method	TR, PUNCHED, 7 INCH
Max Power Dissipation	100mW
Technology	METAL GLAZE/THICK FILM
Construction	Chip
Resistor Type	FIXED RESISTOR
Case Code (Metric)	1608
Rated Power Dissipation (P)	0.1W
Case Code (Imperial)	0603
Height	558.8μm
Height Seated (Max)	0.022 0.55mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	AEC-Q200

ERA-3ARB2872V Product Details

The Panasonic Chip Resistor - Surface Mount ERA-3ARB2872V is a thin film resistor with a resistance of 28K7 and a tolerance of 0.1%. It has a power rating of 0.1W and is packaged in a 0603 size. This resistor is designed for use in a variety of applications, including automotive, consumer electronics, and industrial control systems. It features a low temperature coefficient, high stability, and excellent noise suppression. It is also RoHS compliant and has a high temperature rating of up to +125°C. This resistor is suitable for use in high-density circuit boards and is ideal for applications requiring high reliability and accuracy.
