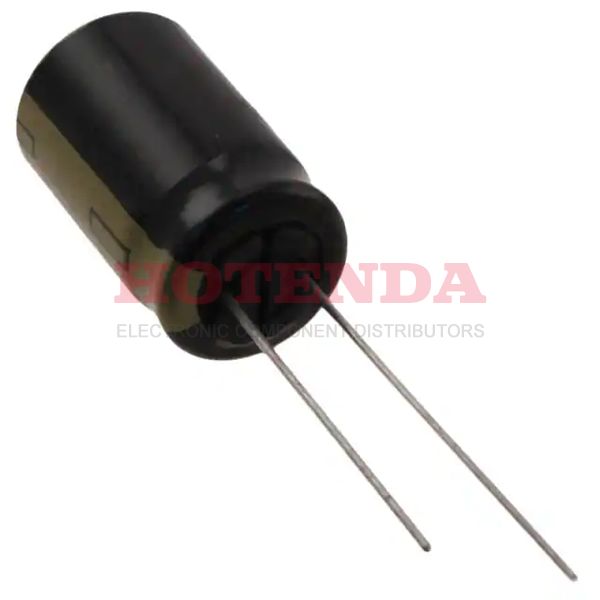

EEU-FM1H681L Overview
Full charge results in a ripple current of 3.16A @ 100kHz.Defining 16mOhm as an ESR (Equivalent Series Resistance) is essential.As far as the ripple current is concerned, it is 2.37A @ 120Hz at the lowest charge.Keeping the maximum height of the seated person (Max) below 1.260 32.00mm is recommended.Based on the dissipation factor of 0.1 %, it operates.Voltage - Rated DC of 50V is required to operate this capacitor.The operating temperature should be maintained at -40°C~105°C for high efficiency.
EEU-FM1H681L Features
the ripple current is 3.16A @ 100kHz.
the ripple current is 2.37A @ 120Hz.
a dissipation factor of 0.1 %
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C
EEU-FM1H681L Applications
There are a lot of Panasonic Electronic Components EEU-FM1H681L applications of aluminum electrolytic capacitors.
- Uninterruptible power supplies
- Standard and switched mode power supplies
- Industrial systems
- Power supplies
- Computer
- Telecommunication
- Frequency converters
- Computer motherboards
- Energy storage in pulse systems
- Smoothing and filtering applications
