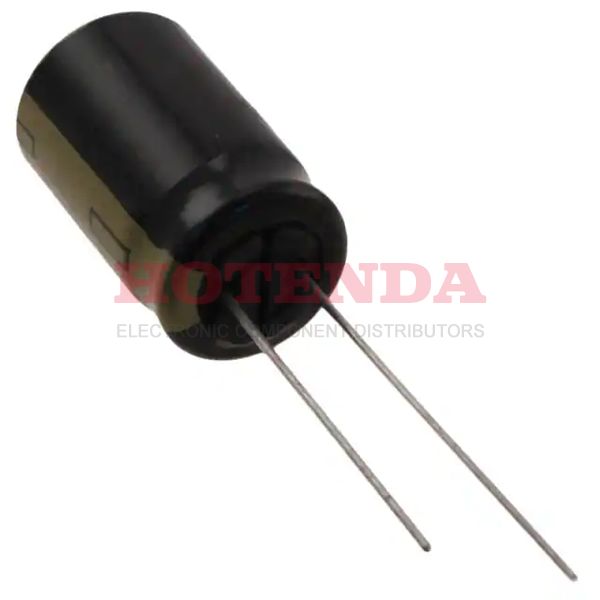

EEU-FM1A332 Overview
Ripple current at full charge is 3.19A @ 100kHz.To perform its function fully, 15mOhm is required to have an equivalent series resistance (ESR).When the charge is at the lowest, the ripple current is 2.552A @ 120Hz.Keep your seated height below 1.063 27.00mm.It operates from a 0.19 % dissipation factor.Rated DC voltage is 10V for this capacitor.The capacitor operates at a voltage of 10V volts.When operating at -40°C~105°C, high efficiency can be achieved.
EEU-FM1A332 Features
the ripple current is 3.19A @ 100kHz.
the ripple current is 2.552A @ 120Hz.
a dissipation factor of 0.19 %
voltage - Rated DC of 10V
an operating temperature of -40°C~105°C
EEU-FM1A332 Applications
There are a lot of Panasonic Electronic Components EEU-FM1A332 applications of aluminum electrolytic capacitors.
- Computer motherboards
- Computer
- Frequency converters
- Telecommunication
- Smoothing and filtering applications
- Uninterruptible power supplies
- Standard and switched mode power supplies
- Power supplies
- Industrial systems
- Energy storage in pulse systems
