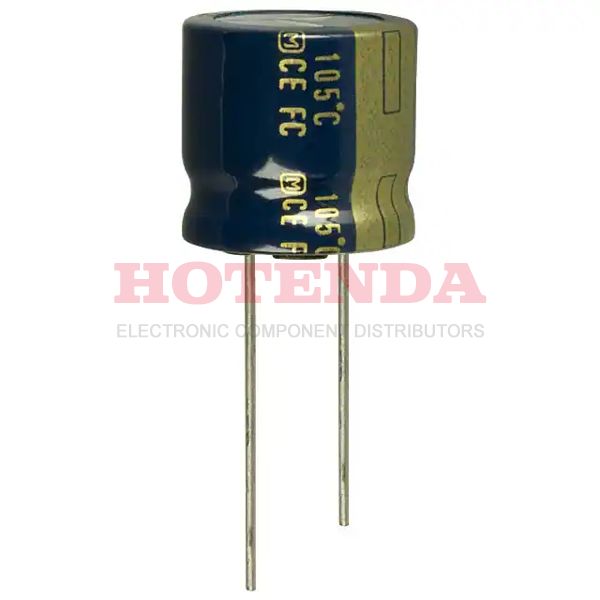

EEU-FC1H391S Overview
In terms of ripple current, it is 1.61A @ 100kHz at full charge.In order for 80mOhm to perform its full function, the ESR (Equivalent Series Resistance) needs to be provided.When the battery is charged to its lowest level, the ripple current is 1.208A @ 120Hz.Seating height (Max) should be kept below 0.591 15.00mm.The capacitor operates from 50V DC voltage.The maximum efficiency can be achieved by maintaining -55°C~105°C as the operating temperature.
EEU-FC1H391S Features
the ripple current is 1.61A @ 100kHz.
the ripple current is 1.208A @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C
EEU-FC1H391S Applications
There are a lot of Panasonic Electronic Components EEU-FC1H391S applications of aluminum electrolytic capacitors.
- Frequency converters
- Smoothing and filtering applications
- Industrial systems
- Energy storage in pulse systems
- Computer
- Uninterruptible power supplies
- Standard and switched mode power supplies
- Power supplies
- Telecommunication
- Computer motherboards
