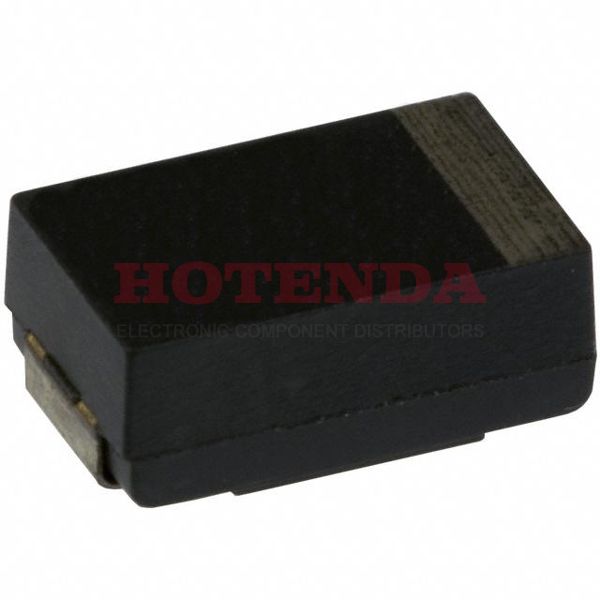

Name: EEF-UD0K680ER
Brand: Panasonic Electronic Components
SKU: EEF-UD0K680ER
Availability: InStock

new-10%

EEF-UD0K680ER

Manufacturer part number:EEF-UD0K680ER

Manufacturer:Panasonic Electronic Components

Description:68μF ±20% 2917 (7343 Metric) 0.118 3.00mm Tape & Reel (TR) 15mOhm SP-Cap UD Surface Mount Polymer General Purpose

Case Package:SOT-23

Datasheet:EEF-UD0K680ER Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-40°C~105°C
Packaging	Tape & Reel (TR)
Series	SP-Cap UD
Published	2013
Size / Dimension	0.287Lx0.169W 7.30mmx4.30mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Type	Polymer
Terminal Finish	Tin (Sn)
Applications	General Purpose
Capacitance	68μF
Voltage - Rated DC	8V
Packing Method	BULK
Depth	4.3mm
Case Code (Metric)	7343
Case Code (Imperial)	2917
ESR (Equivalent Series Resistance)	15mOhm
Polarity	POLARIZED
Rated (DC) Voltage (URdc)	8V
Lifetime @ Temp	1000 Hrs @ 105°C
Leakage Current	0.0544mA
Ripple Current	3A
Life (Hours)	1000 hours
Tan Delta	0.1
Ripple Current @ High Frequency	3A @ 100kHz
Height	2.8mm
Height Seated (Max)	0.118 3.00mm
Length	7.3mm
Radiation Hardening	No
RoHS Status	RoHS Compliant

EEF-UD0K680ER Product Details

EEF-UD0K680ER Overview

3A @ 100kHz ripple current @ high frequency is necessary to power systems.ESR (Equivalent Series Resistance) of 15mOhm is observed in this electrical device.There must be a rated (DC) voltage (URdc) of 8V.In order to ensure stable operation, the operating temperature should be -40°C~105°C.

EEF-UD0K680ER Features

3A @ 100kHz ripple current on a high frequency
a 15mOhm in ESR (Equivalent Series Resistance) in this electrical device
a rated voltage (DC) of 8V
an operating temperature of -40°C~105°C
