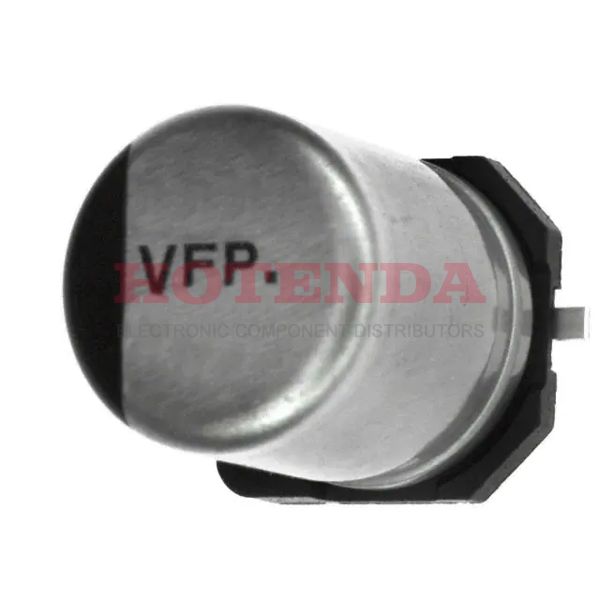

EEE-FP1V221AP Overview
During full charge, the ripple current is 850mA @ 100kHz.In order to fully utilize 80mOhm @ 100kHz, ESR (Equivalent Series Resistance) needs to be provided.The ripple current at the lowest charge is 552.5mA @ 120Hz.You should keep the height of the seat (Max) below 0.402 10.20mm.You should set the rated (DC) voltage (URdc) of the device to 35V VDC.It is recommended to maintain the operating temperature at -55°C~105°C in order to maximize efficiency.
EEE-FP1V221AP Features
the ripple current is 850mA @ 100kHz.
the ripple current is 552.5mA @ 120Hz.
an operating temperature of -55°C~105°C
EEE-FP1V221AP Applications
There are a lot of Panasonic Electronic Components EEE-FP1V221AP applications of aluminum electrolytic capacitors.
- Telecommunication
- Frequency converters
- Power supplies
- Smoothing and filtering applications
- Computer
- Uninterruptible power supplies
- Industrial systems
- Energy storage in pulse systems
- Computer motherboards
- Standard and switched mode power supplies
