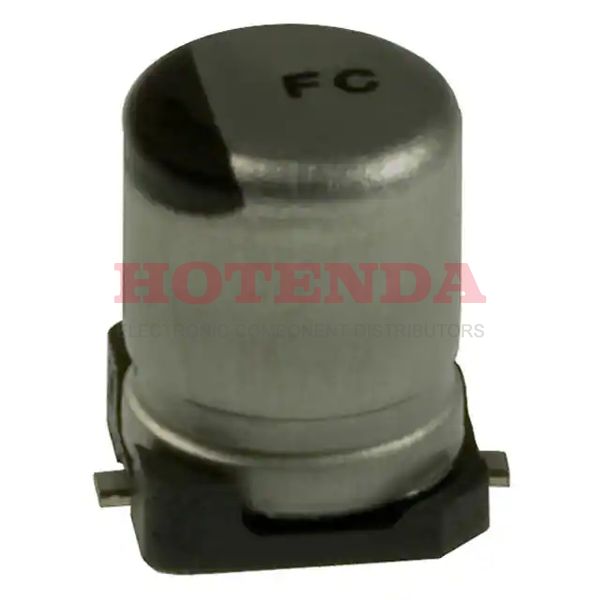

EEE-FC1V2R2AR Overview
With a full charge, the ripple current is 60mA @ 100kHz.The ESR (Equivalent Series Resistance) of 3Ohm needs to be provided to fully play its function.When the charge is at the lowest, the ripple current is 45mA @ 120Hz.Sitting height should not exceed 0.213 5.40mm (Max).The capacitor operates from 35V DC voltage.Rated AC of 35V is the voltage at which this capacitor operates.The maximum efficiency can be achieved by maintaining -40°C~105°C as the operating temperature.
EEE-FC1V2R2AR Features
the ripple current is 60mA @ 100kHz.
the ripple current is 45mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~105°C
EEE-FC1V2R2AR Applications
There are a lot of Panasonic Electronic Components EEE-FC1V2R2AR applications of aluminum electrolytic capacitors.
- Computer motherboards
- Frequency converters
- Telecommunication
- Energy storage in pulse systems
- Computer
- Smoothing and filtering applications
- Power supplies
- Industrial systems
- Standard and switched mode power supplies
- Uninterruptible power supplies
