ECW-H12823JV

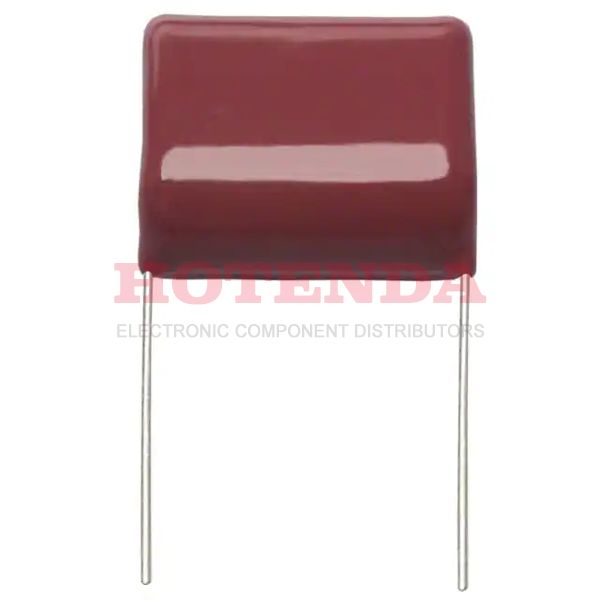

  • ECW-H12823JV - ECW-H(V) 0.082μF Film Capacitor ±5% Radial PC Pins 1.25kV-DC Polypropylene (PP), Metallized PCB, Through Hole
  • ECW-H12823JV - ECW-H(V) 0.082μF Film Capacitor ±5% Radial PC Pins 1.25kV-DC Polypropylene (PP), Metallized PCB, Through Hole

ECW-H12823JV

ECW-H12823JV

Panasonic Electronic Components

ECW-H(V) 0.082μF Film Capacitor ±5% Radial PC Pins 1.25kV-DC Polypropylene (PP), Metallized PCB, Through Hole

SOT-23

ECW-H12823JV Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2011
Series ECW-H(V)
Size / Dimension 1.102Lx0.551W 28.00mmx14.00mm
Tolerance ±5%
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 0.082μF
Voltage - Rated DC 1.25kV
Packing Method AMMO PACK
Depth 14mm
Lead Pitch 25mm
Capacitor Type FILM CAPACITOR
Lead Length 25mm
Dielectric PP
Lead Spacing0.984 25.00mm
Lead Diameter 800 μm
Voltage 1.25kV
Lead/Base Style Straight
Height 22.5mm
Height Seated (Max) 0.945 24.00mm
RoHS StatusROHS3 Compliant
Lead Free Contains Lead
In-Stock:2155 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.865715$1.865715
10$1.760108$17.60108
100$1.660479$166.0479
500$1.566490$783.245
1000$1.477821$1477.821

ECW-H12823JV Product Details

ECW-H12823JV Overview


This electrical device has a 0.984 25.00mm lead spacing.Temperatures of -40°C~105°C are suitable for operating the device.

ECW-H12823JV Features



ECW-H12823JV Applications


There are a lot of Panasonic Electronic Components ECW-H12823JV applications of film capacitors.

  • Global positioning systems
  • Lighting
  • Filtering
  • Coupling, decoupling
  • Compact fluorescent lamps (CFL)
  • Audio/video equipment
  • Electronic ballasts
  • Battery management system
  • Filters
  • Satellite TV
