ECW-FD2W824J

  • ECW-FD2W824J - ECW-F(D) 0.82μF Film Capacitor ±5% Radial PC Pins 450V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-FD2W824J - ECW-F(D) 0.82μF Film Capacitor ±5% Radial PC Pins 450V-DC Polypropylene (PP), Metallized Through Hole

ECW-FD2W824J

ECW-FD2W824J

Panasonic Electronic Components

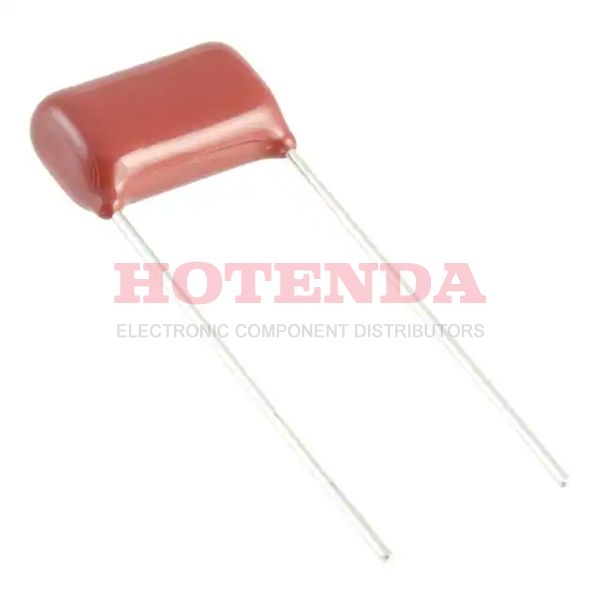

ECW-F(D) 0.82μF Film Capacitor ±5% Radial PC Pins 450V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-FD2W824J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Published 2012
Series ECW-F(D)
Size / Dimension 0.689Lx0.283W 17.50mmx7.20mm
Tolerance ±5%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT
Voltage - Rated 450V
HTS Code8532.25.00.80
Capacitance 0.82μF
Voltage - Rated DC 450V
Packing Method Ammo Pack
Terminal Pitch7.5mm
Depth 7.2mm
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.591 15.00mm
Lead Diameter 800 μm
Size Code 6928
Height 10.4mm
Height Seated (Max) 0.409 10.40mm
Length 17.5mm
REACH SVHC Unknown
RoHS StatusROHS3 Compliant
In-Stock:9380 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.75000$0.75
10$0.53700$5.37
100$0.36290$36.29
500$0.27594$137.97

ECW-FD2W824J Product Details

ECW-FD2W824J Overview


Lead spacing is 0.591 15.00mm for this electrical device.Temperatures as low as -40°C~110°C are suitable for the device.

ECW-FD2W824J Features



ECW-FD2W824J Applications


There are a lot of Panasonic Electronic Components ECW-FD2W824J applications of film capacitors.

  • RFI for automotive
  • Test and measuring equipment
  • Mobile communications
  • Blocking
  • Filters
  • Coupling, decoupling
  • Audio/video equipment
  • Battery management system
  • VCO's
  • RF Modules
