ECW-F4914HL

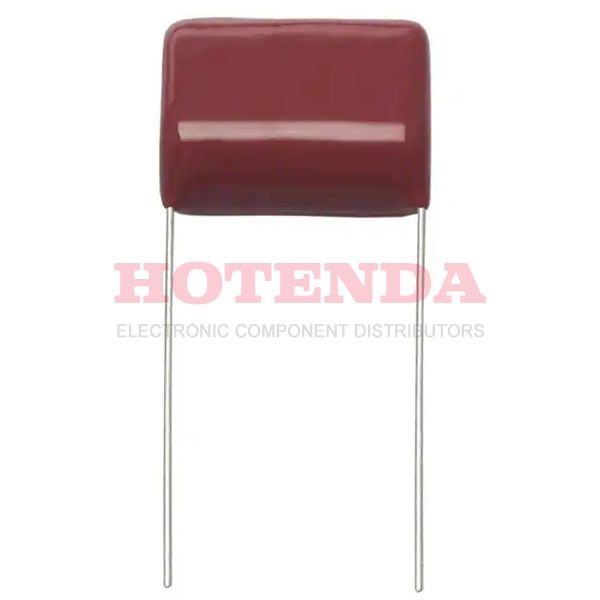

  • ECW-F4914HL - ECW-F(L) 0.91μF Film Capacitor ±3% Radial PC Pins 400V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-F4914HL - ECW-F(L) 0.91μF Film Capacitor ±3% Radial PC Pins 400V-DC Polypropylene (PP), Metallized Through Hole

ECW-F4914HL

ECW-F4914HL

Panasonic Electronic Components

ECW-F(L) 0.91μF Film Capacitor ±3% Radial PC Pins 400V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-F4914HL Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2011
Series ECW-F(L)
Size / Dimension 0.906Lx0.488W 23.00mmx12.40mm
Tolerance ±3%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 0.91μF
Voltage - Rated DC 400V
Packing Method AMMO PACK
Lead Pitch 20mm
Capacitor Type FILM CAPACITOR
Lead Length 25mm
Dielectric PP
Lead Spacing0.787 20.00mm
Lead Diameter 800 μm
Size Code 9149
Height 19.2mm
Height Seated (Max) 0.815 20.70mm
Width 12.4mm
RoHS StatusROHS3 Compliant
In-Stock:2314 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.224525$2.224525
10$2.098608$20.98608
100$1.979819$197.9819
500$1.867754$933.877
1000$1.762032$1762.032

ECW-F4914HL Product Details

ECW-F4914HL Overview


Its lead spacing is 0.787 20.00mm.It is capable of operating at -40°C~105°C degrees Celsius.

ECW-F4914HL Features



ECW-F4914HL Applications


There are a lot of Panasonic Electronic Components ECW-F4914HL applications of film capacitors.

  • Audio/video equipment
  • Filtering
  • Filters
  • Bypassing
  • IGBT
  • Switch-mode power supplies
  • Satellite TV
  • Switch mode power supplies
  • Compact fluorescent lamps (CFL)
  • Industrial and automotive inverters
