ECW-F4333JL

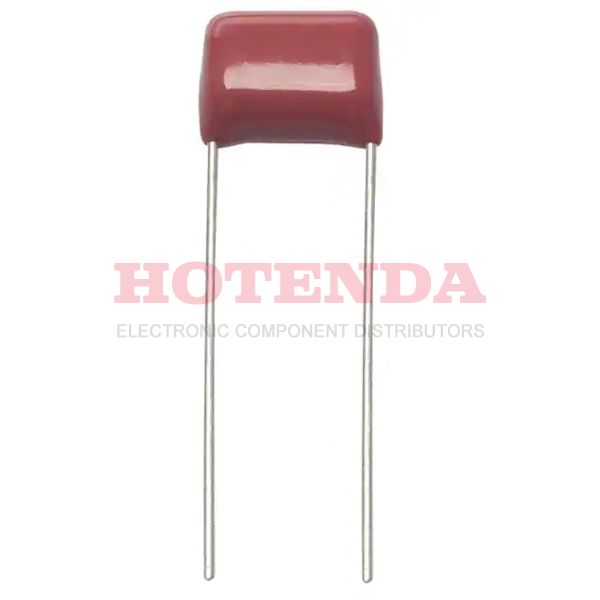

  • ECW-F4333JL - ECW-F(L) 0.033μF Film Capacitor ±5% Radial PC Pins 400V-DC Polypropylene (PP), Metallized PCB, Radial, Through Hole
  • ECW-F4333JL - ECW-F(L) 0.033μF Film Capacitor ±5% Radial PC Pins 400V-DC Polypropylene (PP), Metallized PCB, Radial, Through Hole

ECW-F4333JL

ECW-F4333JL

Panasonic Electronic Components

ECW-F(L) 0.033μF Film Capacitor ±5% Radial PC Pins 400V-DC Polypropylene (PP), Metallized PCB, Radial, Through Hole

SOT-23

ECW-F4333JL Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount PCB, Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2011
Series ECW-F(L)
Size / Dimension 0.492Lx0.264W 12.50mmx6.70mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 0.033μF
Voltage - Rated DC 400V
Packing Method AMMO PACK
Depth 6.7mm
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Lead Length 25mm
Dielectric PP
Lead Spacing0.394 10.00mm
Lead Diameter 600 μm
Size Code 4926
Voltage 400V
Lead/Base Style Straight
Height 9.5mm
Height Seated (Max) 0.433 11.00mm
RoHS StatusRoHS Compliant
Lead Free Contains Lead
In-Stock:5653 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.16000$1.16
10$0.91600$9.16
100$0.68720$68.72
500$0.51918$259.59

ECW-F4333JL Product Details

ECW-F4333JL Overview


Its lead spacing is 0.394 10.00mm.Temperatures of -40°C~105°C allow the device to operate.

ECW-F4333JL Features



ECW-F4333JL Applications


There are a lot of Panasonic Electronic Components ECW-F4333JL applications of film capacitors.

  • Filtering
  • Switch mode power supplies
  • Filters
  • Audio/video equipment
  • Battery management system
  • Satellite TV
  • Test and measuring equipment
  • VCO's
  • Compact fluorescent lamps (CFL)
  • TV and monitor sets
