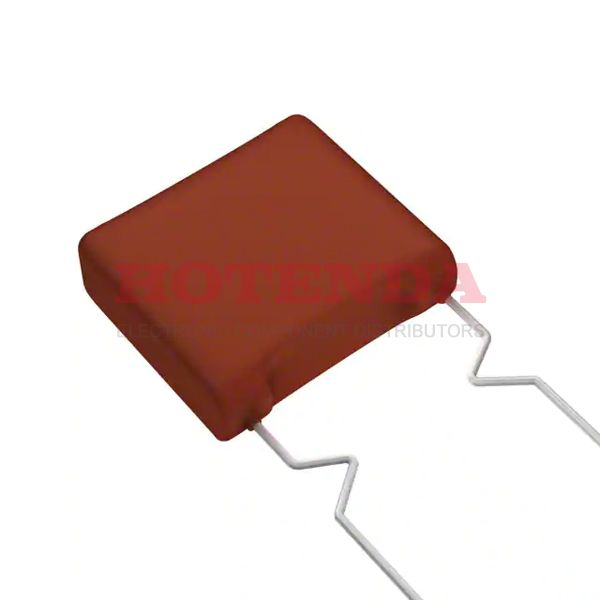

ECW-F2564JAQ

Name: ECW-F2564JAQ
Brand: Panasonic Electronic Components
SKU: ECW-F2564JAQ
Price: 1.17000 USD
Availability: InStock

new-10%

Manufacturer part number:ECW-F2564JAQ

Manufacturer:Panasonic Electronic Components

Description:ECW-F(A) 0.56μF Film Capacitor ±5% Radial PC Pins 250V-DC 250V-AC Polypropylene (PP), Metallized Through Hole

Case Package:SOT-23

Datasheet:ECW-F2564JAQ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Number of Pins	2
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2012
Series	ECW-F(A)
Size / Dimension	0.713Lx0.272W 18.10mmx6.90mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	High Frequency, Switching
Capacitance	0.56μF
Voltage - Rated DC	250V
Packing Method	AMMO PACK
Depth	6.9mm
Voltage - Rated AC	250V
Lead Pitch	15mm
Capacitor Type	FILM CAPACITOR
Dielectric	PP
Lead Spacing	0.591 15.00mm
Lead Diameter	800 μm
Voltage	250V
Height	18.4mm
Height Seated (Max)	0.783 19.90mm
Length	18.1mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
