ECW-F2225JAQ

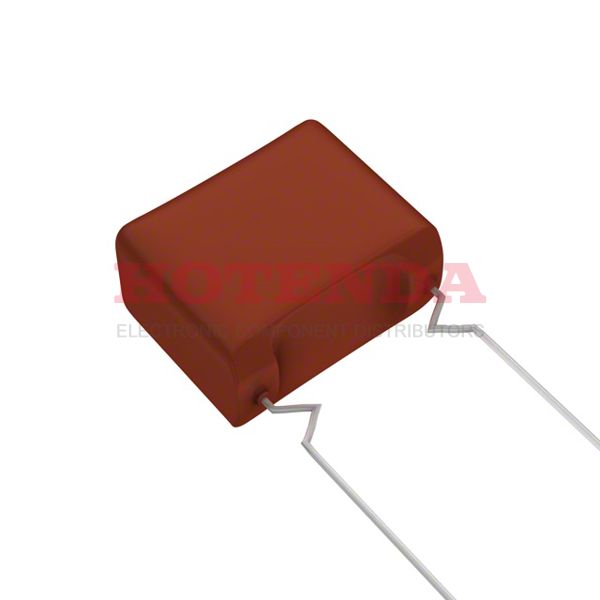

  • ECW-F2225JAQ - ECW-F(A) 2.2μF Film Capacitor ±5% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole
  • ECW-F2225JAQ - ECW-F(A) 2.2μF Film Capacitor ±5% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole

ECW-F2225JAQ

ECW-F2225JAQ

Panasonic Electronic Components

ECW-F(A) 2.2μF Film Capacitor ±5% Radial PC Pins 250V-DC Polypropylene (PP), Metallized Through Hole

SOT-23

ECW-F2225JAQ Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2012
Series ECW-F(A)
Size / Dimension 0.740Lx0.496W 18.80mmx12.60mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 2.2μF
Voltage - Rated DC 250V
Packing Method AMMO PACK
Lead Pitch 15mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.591 15.00mm
Size Code 7450
Height Seated (Max) 1.028 26.10mm
Length 18.8mm
Width 12.6mm
RoHS StatusROHS3 Compliant
In-Stock:5010 items

Pricing & Ordering

QuantityUnit PriceExt. Price
200$1.27990$255.98

ECW-F2225JAQ Product Details

ECW-F2225JAQ Overview


Electrical devices with 0.591 15.00mm lead spacing are used in this application.A temperature of -40°C~105°C is suitable for operation of the device.

ECW-F2225JAQ Features




ECW-F2225JAQ Applications


There are a lot of Panasonic Electronic Components
ECW-F2225JAQ applications of film capacitors.


  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
