ECQ-U2A102ML

  • ECQ-U2A102ML - ECQ-UL 1000pF Film Capacitor ±20% Radial PC Pins 909mV-DC 275V-AC Polyester, Metallized PCB, Through Hole
  • ECQ-U2A102ML - ECQ-UL 1000pF Film Capacitor ±20% Radial PC Pins 909mV-DC 275V-AC Polyester, Metallized PCB, Through Hole

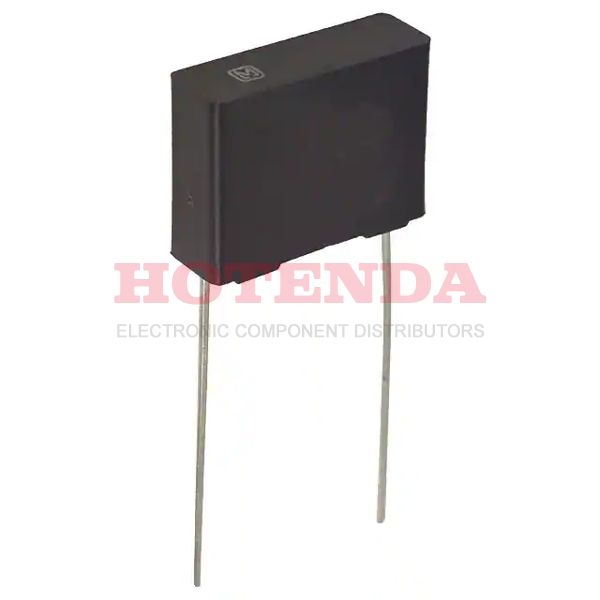

ECQ-U2A102ML

ECQ-U2A102ML

Panasonic Electronic Components

ECQ-UL 1000pF Film Capacitor ±20% Radial PC Pins 909mV-DC 275V-AC Polyester, Metallized PCB, Through Hole

SOT-23

ECQ-U2A102ML Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 17 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~100°C
PackagingBulk
Published 2011
Series ECQ-UL
Size / Dimension 0.591Lx0.197W 15.00mmx5.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part StatusNot For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications EMI, RFI Suppression
Capacitance 1000pF
Voltage - Rated DC 909mV
Depth 5mm
Reference Standard IEC60384-14
Voltage - Rated AC 275V
Lead Pitch 12.5mm
Capacitor Type FILM CAPACITOR
Lead Length 20mm
Dielectric PET
Lead Spacing0.492 12.50mm
Multilayer No
Lead Diameter 600 μm
Lead/Base Style Straight
Height 5mm
Height Seated (Max) 0.472 12.00mm
Radiation HardeningNo
REACH SVHC Unknown
RoHS StatusRoHS Compliant
Lead Free Lead Free
Ratings X2
In-Stock:1871 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.46000$0.46
10$0.32700$3.27
100$0.22110$22.11
500$0.16806$84.03

ECQ-U2A102ML Product Details

ECQ-U2A102ML Overview


There is 0.492 12.50mm lead spacing on this electrical device.-40°C~100°C is the maximum temperature at which the device can operate.

ECQ-U2A102ML Features




ECQ-U2A102ML Applications


There are a lot of Panasonic Electronic Components
ECQ-U2A102ML applications of film capacitors.


  • Coupling, decoupling
  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
