ECQ-E4823JF9

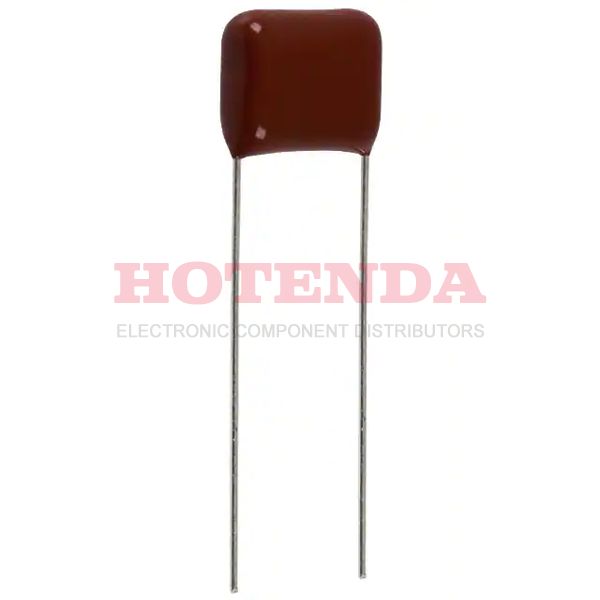

  • ECQ-E4823JF9 - ECQ-E(F) 0.082μF Film Capacitor ±5% Radial PC Pins 400V-DC Polyester, Metallized Through Hole
  • ECQ-E4823JF9 - ECQ-E(F) 0.082μF Film Capacitor ±5% Radial PC Pins 400V-DC Polyester, Metallized Through Hole

ECQ-E4823JF9

ECQ-E4823JF9

Panasonic Electronic Components

ECQ-E(F) 0.082μF Film Capacitor ±5% Radial PC Pins 400V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E4823JF9 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingTape & Reel (TR)
Published 2005
Series ECQ-E(F)
Size / Dimension 0.472Lx0.228W 12.00mmx5.80mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 0.082μF
Voltage - Rated DC 400V
Packing Method TR
Terminal Pitch10mm
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.197 5.00mm
Size Code 4723
Height Seated (Max) 0.630 16.00mm
Length 12mm
Width 5.8mm
RoHS StatusROHS3 Compliant
In-Stock:25895 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.536875$0.536875
10$0.506486$5.06486
100$0.477817$47.7817
500$0.450770$225.385
1000$0.425255$425.255

ECQ-E4823JF9 Product Details

ECQ-E4823JF9 Overview


The lead spacing of this electrical device is 0.197 5.00mm.The device is capable of operating at the temperature of -40°C~105°C.

ECQ-E4823JF9 Features




ECQ-E4823JF9 Applications


There are a lot of Panasonic Electronic Components
ECQ-E4823JF9 applications of film capacitors.


  • Blocking
  • Coupling, decoupling
  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
