ECQ-E4184KFW

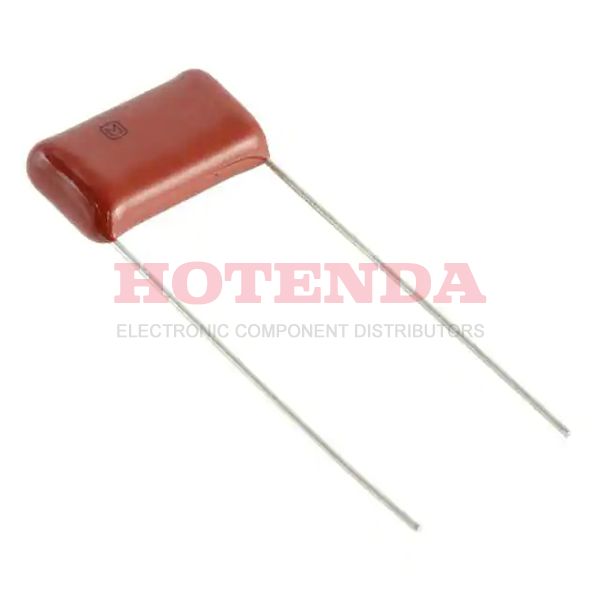

  • ECQ-E4184KFW - ECQ-E(F) 0.18μF Film Capacitor ±10% Radial PC Pins 400V-DC Polyester, Metallized Through Hole
  • ECQ-E4184KFW - ECQ-E(F) 0.18μF Film Capacitor ±10% Radial PC Pins 400V-DC Polyester, Metallized Through Hole

ECQ-E4184KFW

ECQ-E4184KFW

Panasonic Electronic Components

ECQ-E(F) 0.18μF Film Capacitor ±10% Radial PC Pins 400V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E4184KFW Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2005
Series ECQ-E(F)
Size / Dimension 0.728Lx0.213W 18.50mmx5.40mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 0.18μF
Voltage - Rated DC 400V
Packing Method AMMO PACK
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.394 10.00mm
Size Code 7321
Height Seated (Max) 0.689 17.50mm
Length 18.5mm
Width 5.4mm
RoHS StatusROHS3 Compliant
In-Stock:27095 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECQ-E4184KFW Product Details

ECQ-E4184KFW Overview


The lead spacing of this electrical device is 0.394 10.00mm.It is capable of operating at -40°C~105°C degrees Celsius.

ECQ-E4184KFW Features



ECQ-E4184KFW Applications


There are a lot of Panasonic Electronic Components ECQ-E4184KFW applications of film capacitors.

  • TV and monitor sets
  • Matching networks
  • Mobile communications
  • Switch mode power supplies
  • Audio/video equipment
  • Blocking
  • Satellite TV
  • Lighting
  • Switch-mode power supplies
  • IGBT
