ECQ-E2824KFB

  • ECQ-E2824KFB - ECQ-E(F) 0.82μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2824KFB - ECQ-E(F) 0.82μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2824KFB

ECQ-E2824KFB

Panasonic Electronic Components

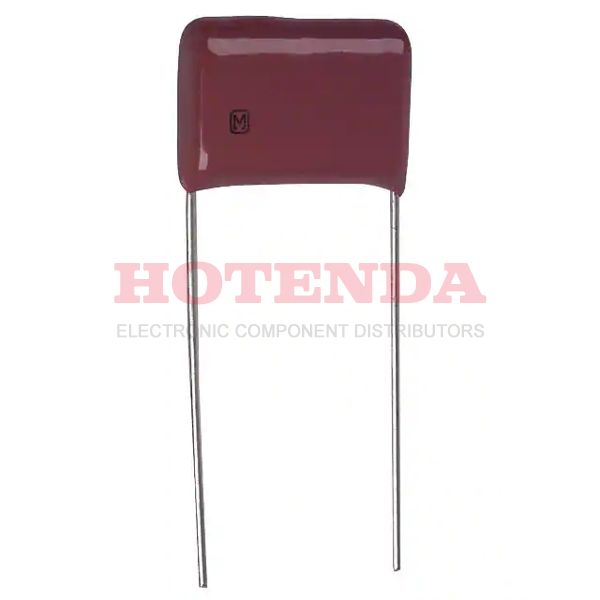

ECQ-E(F) 0.82μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2824KFB Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2005
Series ECQ-E(F)
Size / Dimension 0.728Lx0.256W 18.50mmx6.50mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 0.82μF
Voltage - Rated DC 250V
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.394 10.00mm
Size Code 7326
Height Seated (Max) 0.768 19.50mm
Length 18.5mm
Width 6.5mm
RoHS StatusROHS3 Compliant
In-Stock:28589 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.553560$0.55356
10$0.522226$5.22226
100$0.492666$49.2666
500$0.464780$232.39
1000$0.438471$438.471

ECQ-E2824KFB Product Details

ECQ-E2824KFB Overview


The lead spacing of this electrical device is 0.394 10.00mm.Temperatures of -40°C~105°C are suitable for operating the device.

ECQ-E2824KFB Features



ECQ-E2824KFB Applications


There are a lot of Panasonic Electronic Components ECQ-E2824KFB applications of film capacitors.

  • Filters
  • Electronic ballasts
  • Filtering
  • Battery management system
  • Snubbering
  • Switch-mode power supplies
  • Compact fluorescent lamps (CFL)
  • Audio/video equipment
  • RF Modules
  • Satellite TV
